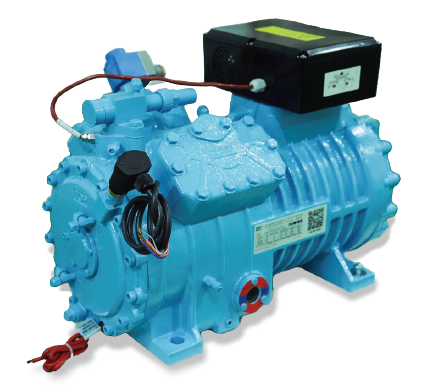

Four-Cylinder Refrigeration Piston Compressor BTF4VCS-6.3Z

Product Overview

TheBTF4VCS-6.3Z~BTF4NCS-20.3G is a versatile medium four-cylinder T-Series piston compressor developed by Blait for industrial cooling systems. Tailored to handle extreme temperature ranges (-50℃ evaporation to 50℃ condensing), this compressor combines stability, efficiency, and flexibility—making it ideal for medium-low to high-temperature industrial refrigeration needs. With a 34.73 m³/h displacement (50Hz) and 6 HP (4.4 kW) motor, it supports R22, R404A, and R134a refrigerants, adapting to diverse industrial scenarios.

M4 PISTON COMPRESSOR

· Product Model：BTF4VCS-6.3Z~BTF4NCS-20.3G

· Displacement：34.73m3/h~56.35m3/h

· Refrigerating Fluid：Applicable to R22, R404A, R507A and other refrigerants

· Application Fields：Commercial refrigeration, small cold storage units, pharmaceutical cold chain and other refrigeration fields.

KRIWAN

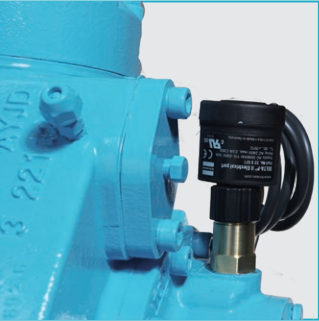

Electronic Oil Pressure Differential Switch

KRIWAN

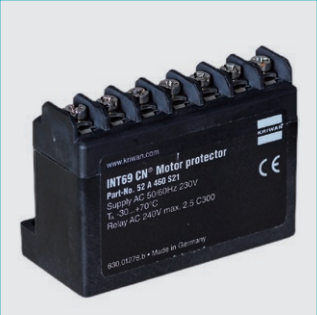

Motor Protection Modules

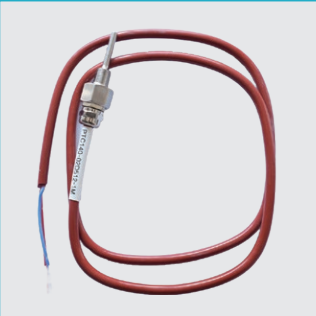

Temperature Sensor

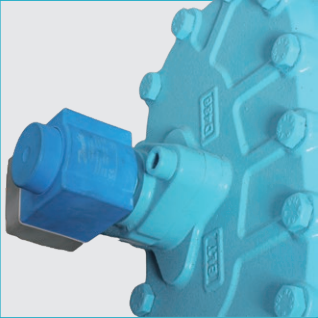

Capacity Control

The four-cylinder models have 50% and 100% two stages loading adjustable

The six-cylinder models have 34%, 67% and 100% three stages loading

adjustable

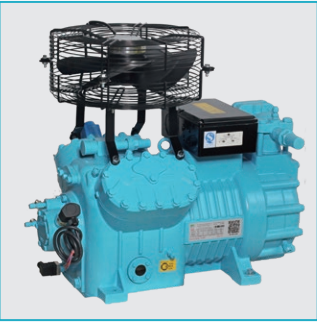

Cylinder Head Fan

Physical cooling

Core Features

Wide Operating Temperature Range

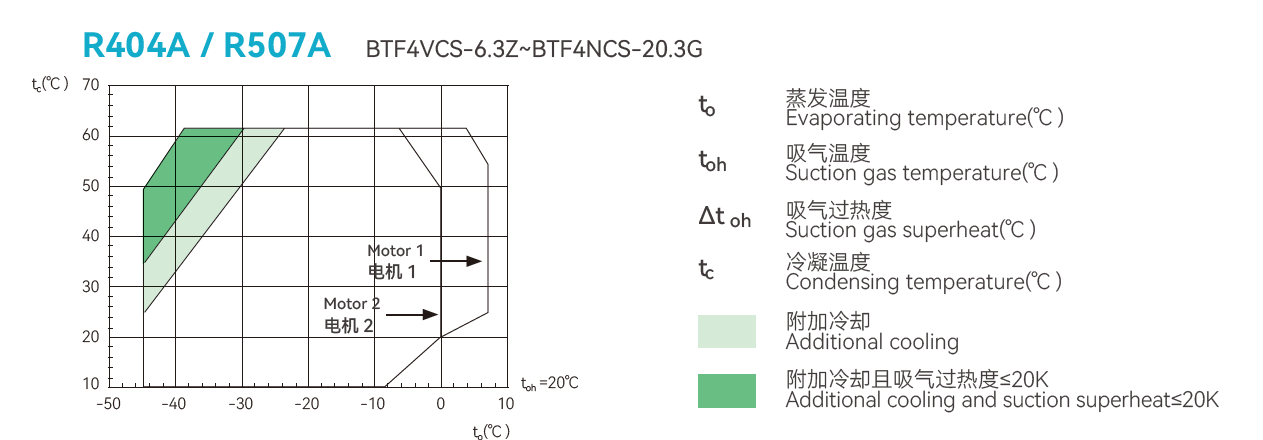

Operates reliably at -50℃ evaporation temperature (compatible with R22/R404A) and up to 50℃ condensing temperature, suitable for cold storage and heat pump applications.

Thermal-resistant coatings on valve plates and a dedicated oil cooling loop prevent overheating in high-temperature environments.

Low Vibration & Noise

Features dynamic balancing technology that reduces vibration to <3.5 mm/s, minimizing stress on pipelines and installations.

Noise levels reach only 72 dB(A) at 1 meter, complying with ISO 3744 standards—ideal for noise-sensitive industrial areas.

Flexible Capacity & Power Compatibility

Offers 25%-100% stepless capacity regulation (optional) to match variable cooling demands, reducing energy waste.

Supports dual power supplies: 380V-420V (3PH/50Hz) and 440V-480V (3PH/60Hz), adapting to global industrial power standards.

Why Choose Blait

Blait’s expertise ensures the BTF4VCS-6.3Z meets rigorous industrial standards, with key advantages including:

Precision Manufacturing: Uses automated assembly lines with ±0.005mm machining tolerance, ensuring component accuracy and operational efficiency.

Lifecycle Testing: Conducts 2000-hour accelerated endurance testing and material wear analysis, guaranteeing a 20,000-hour Mean Time Between Failures (MTBF).

Global Distribution & Support: Maintains a network of partners across 60+ countries, providing timely delivery and on-site service for international clients.

Customization: Offers optional oil systems (e.g., oil separator, pressure differential protection) and OEM solutions to fit specific project needs.
