Rotalock Valve Steel Shut Off Valve for Refrigeration Compressor Condensing Unit Cold Storage OEM Factory Supply

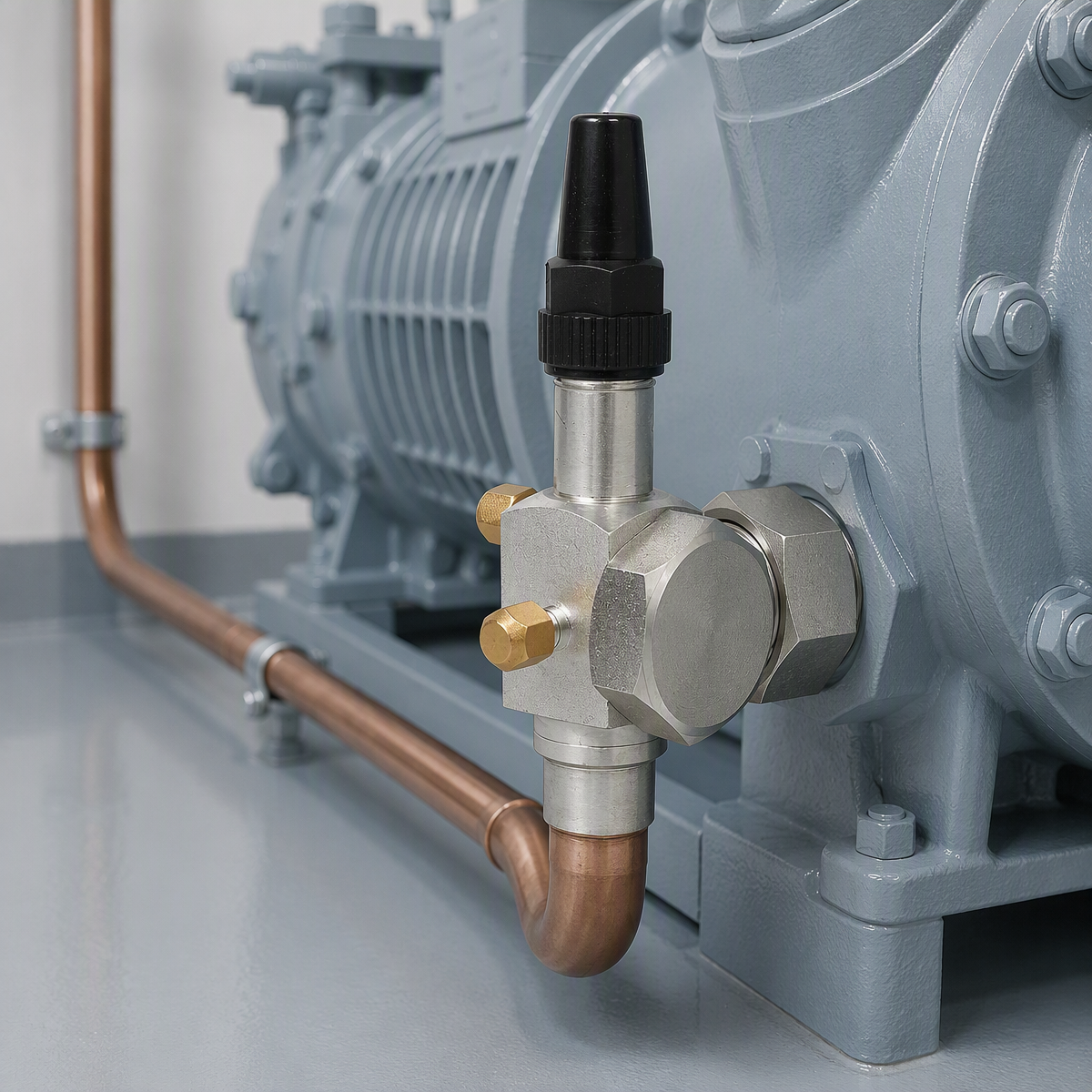

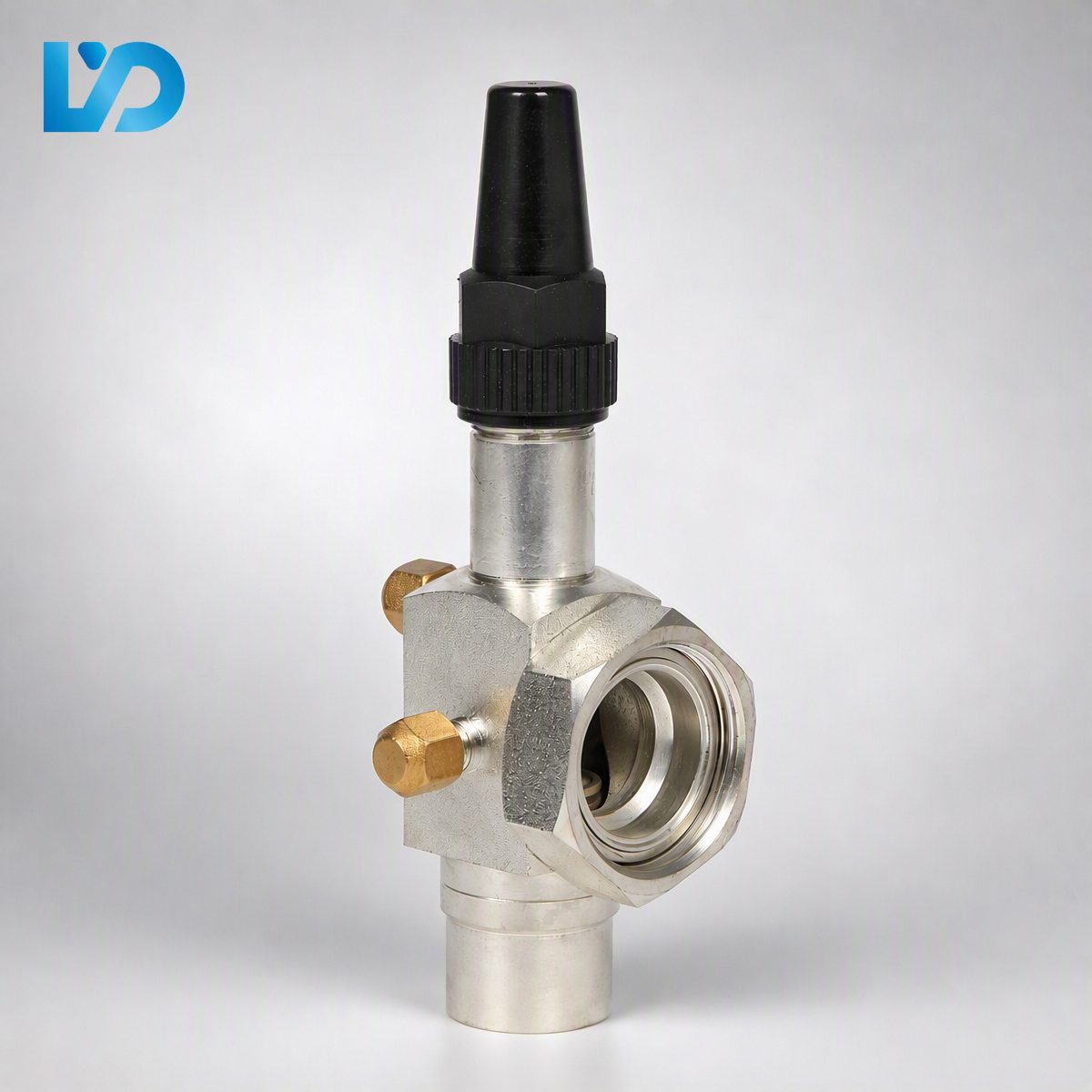

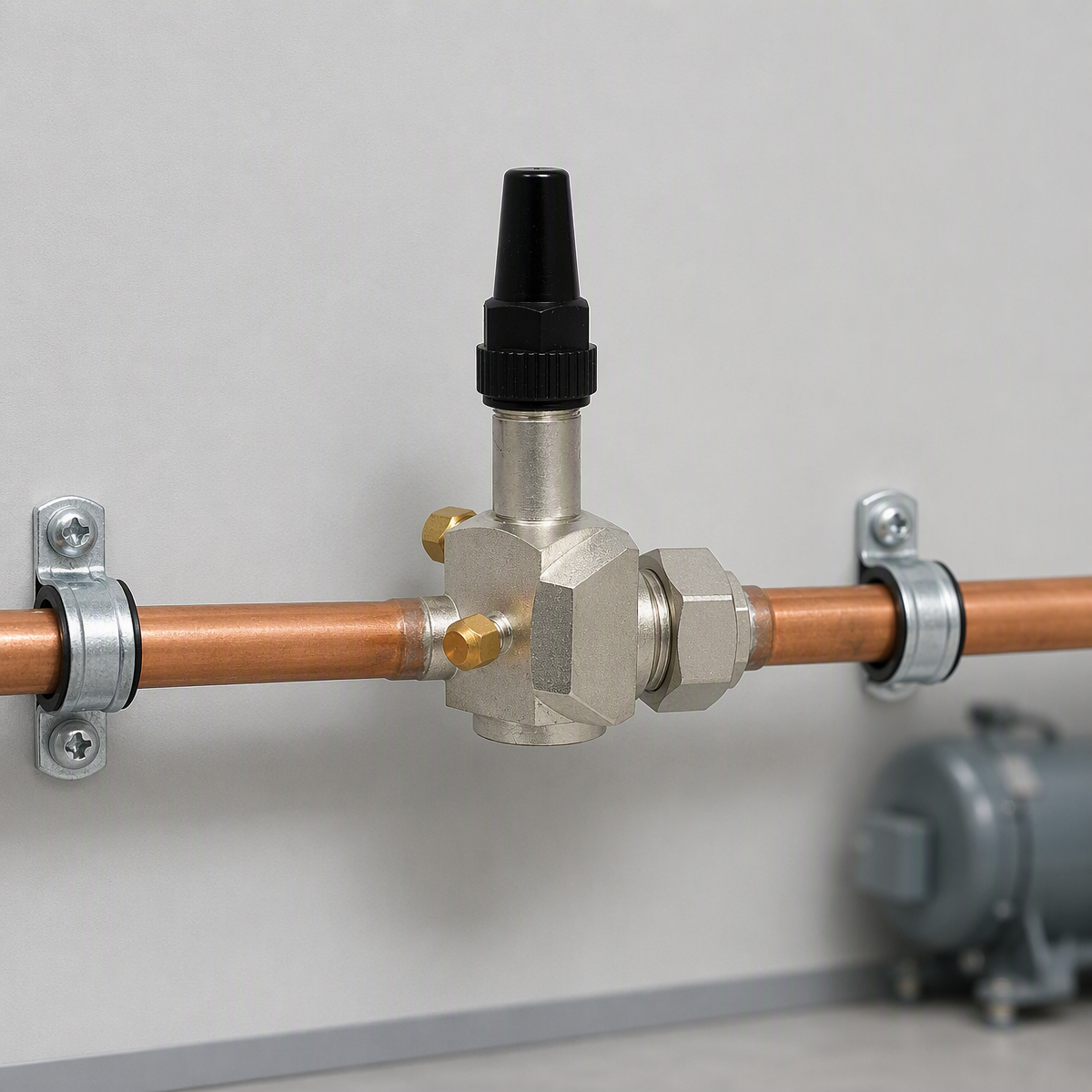

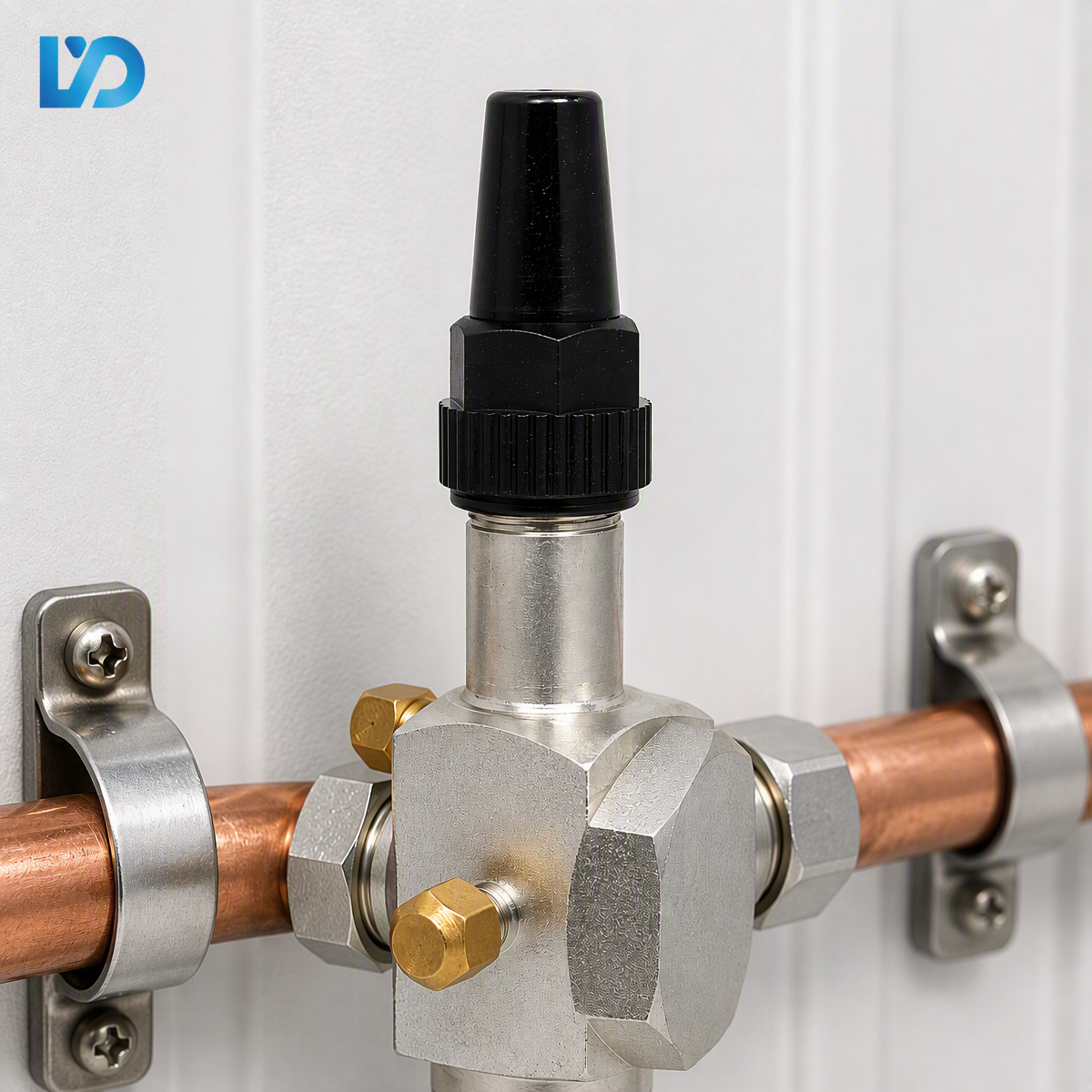

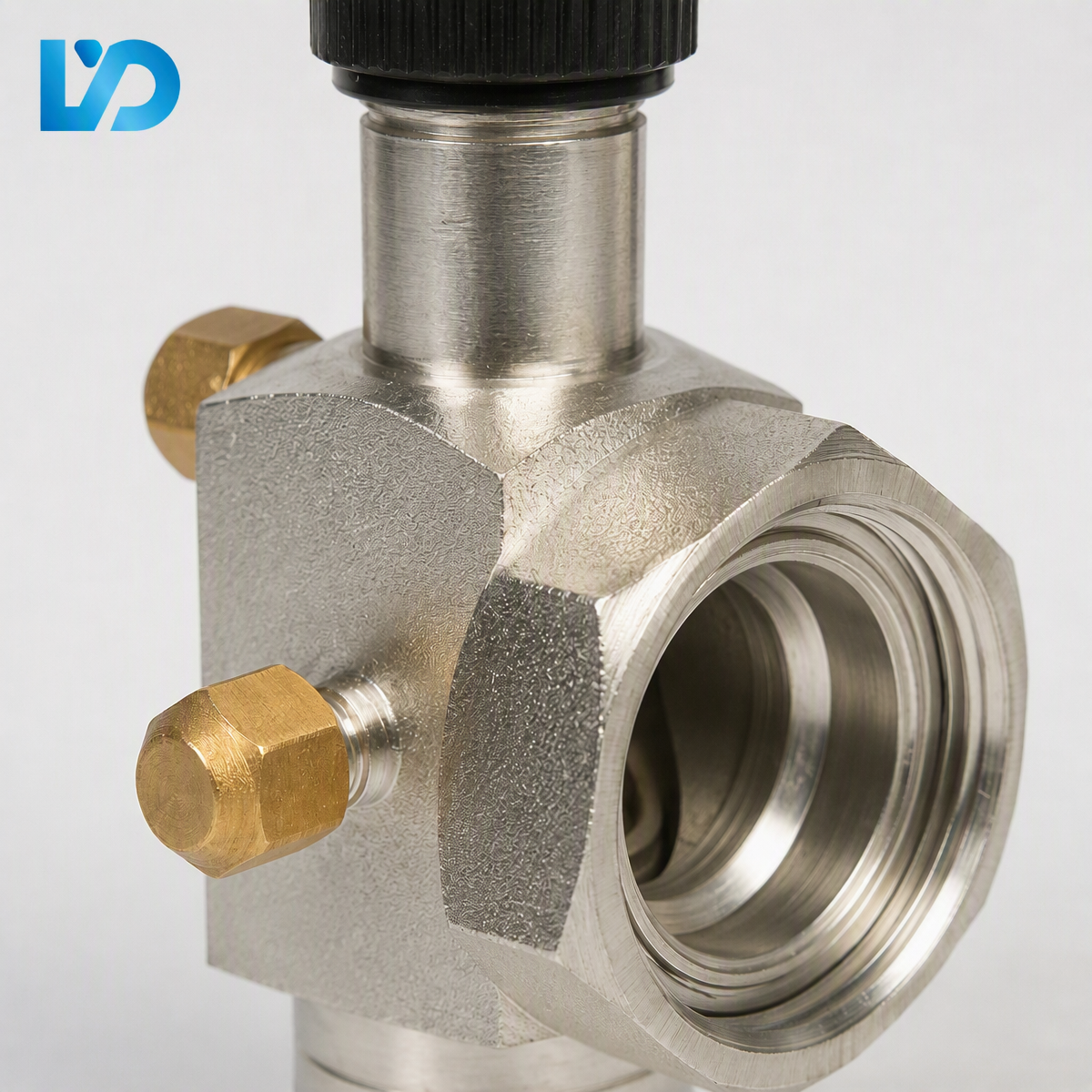

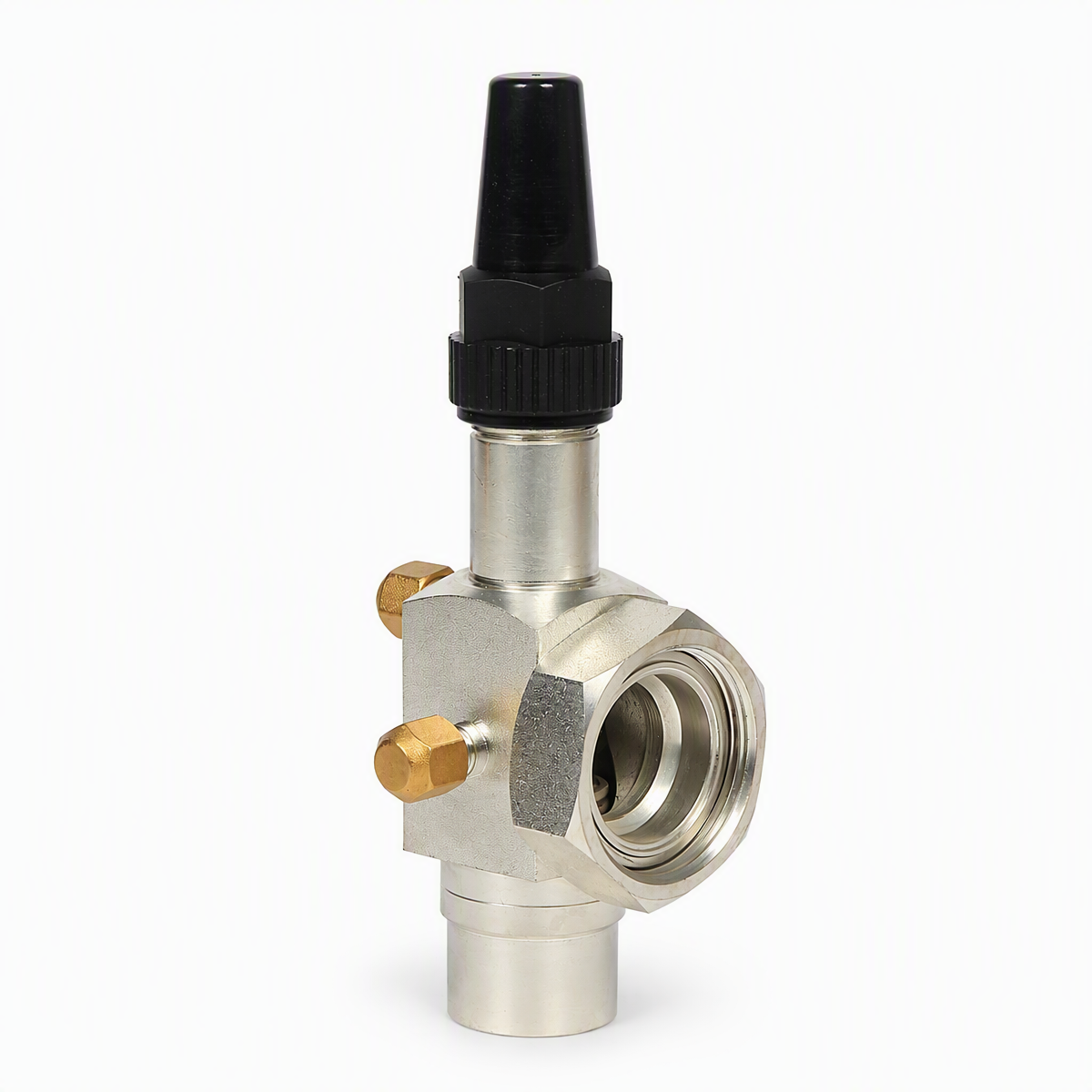

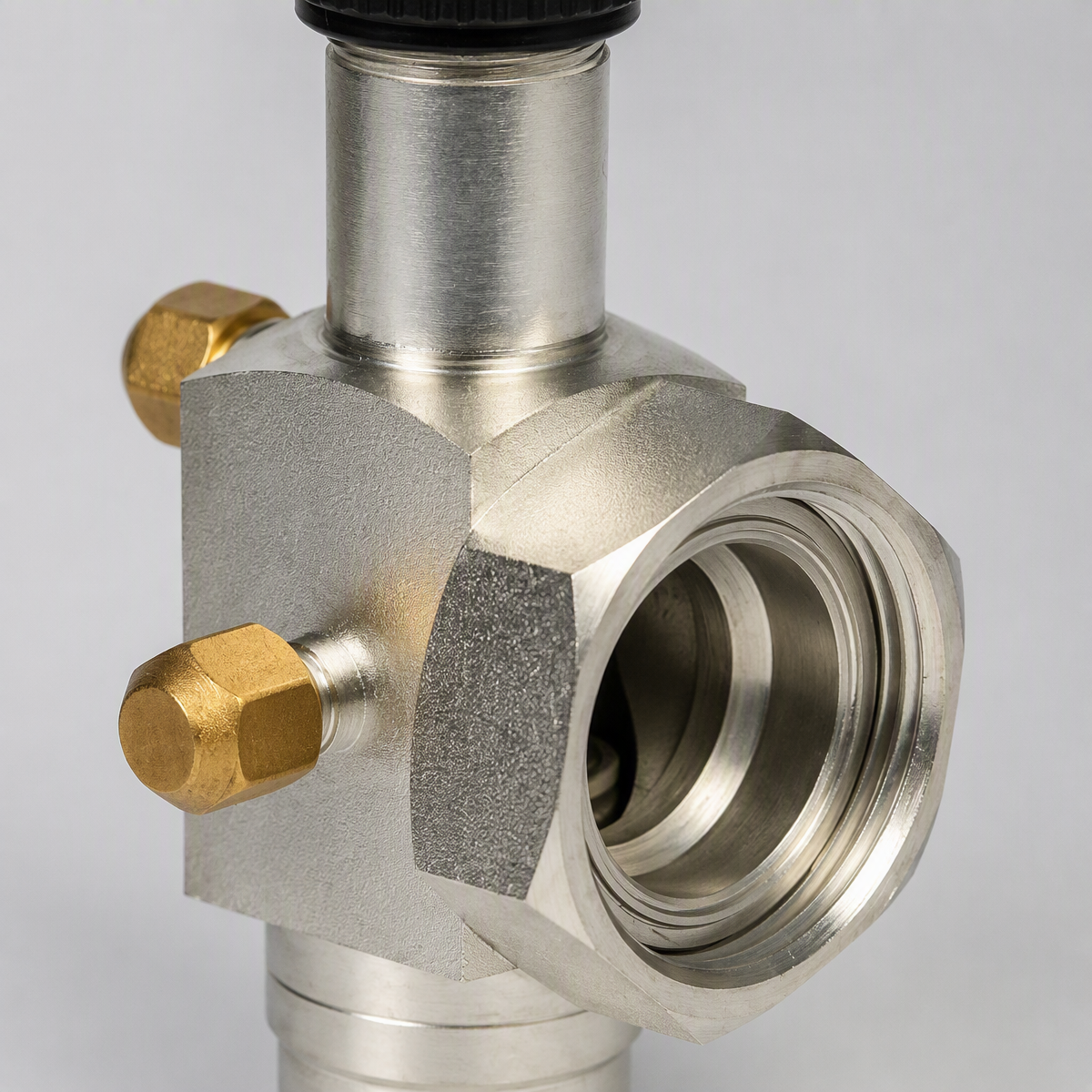

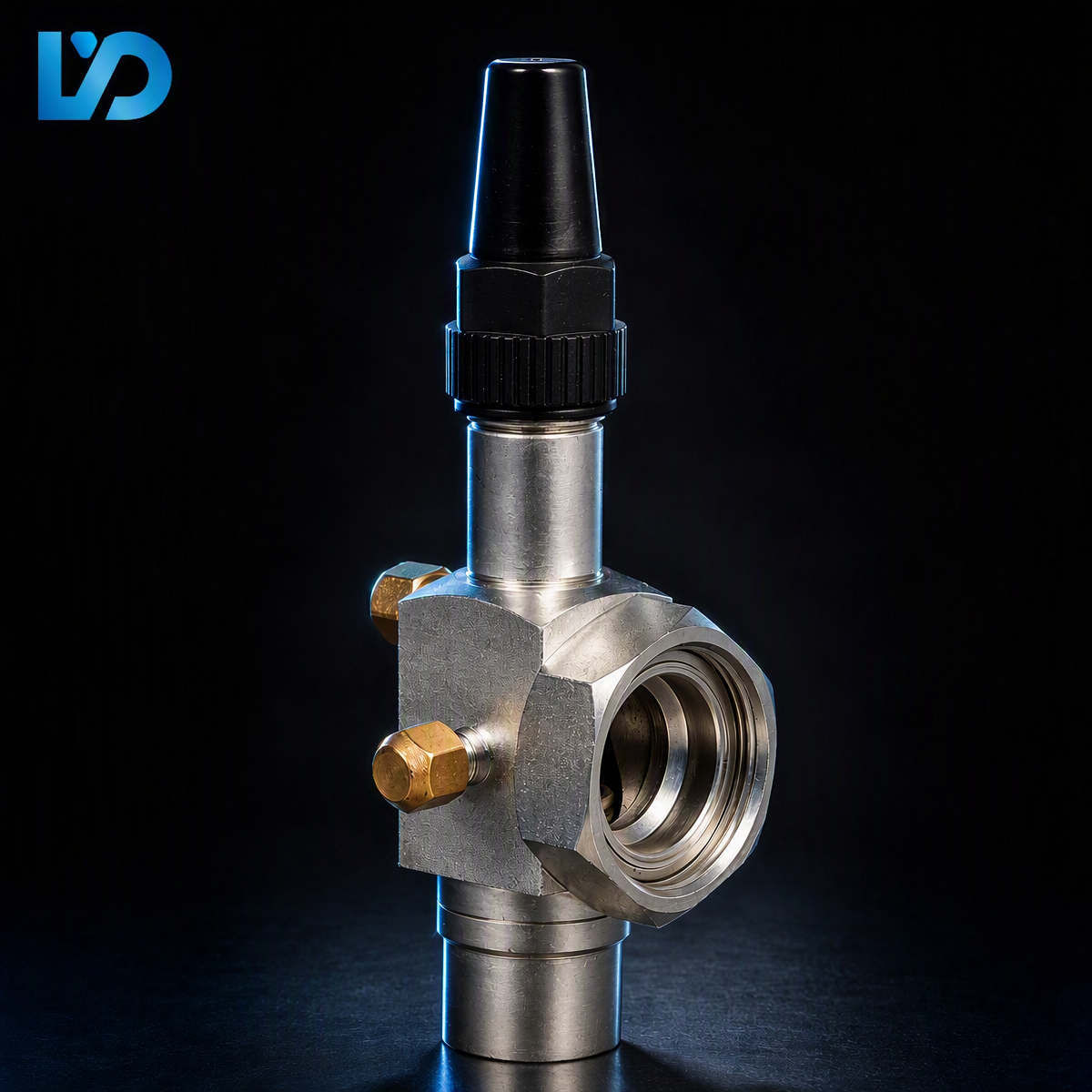

Steel Rotalock Valve for Refrigeration Compressor and System Service
The rotalock valve is a professional shut-off and service valve widely used on semi-hermetic and screw refrigeration compressors, condensing units and cold storage piping. Machined from high-strength steel with a compact body, it provides a secure rotalock connection, convenient refrigerant charging, pressure testing, isolation and maintenance access, low flow resistance and reliable sealing.

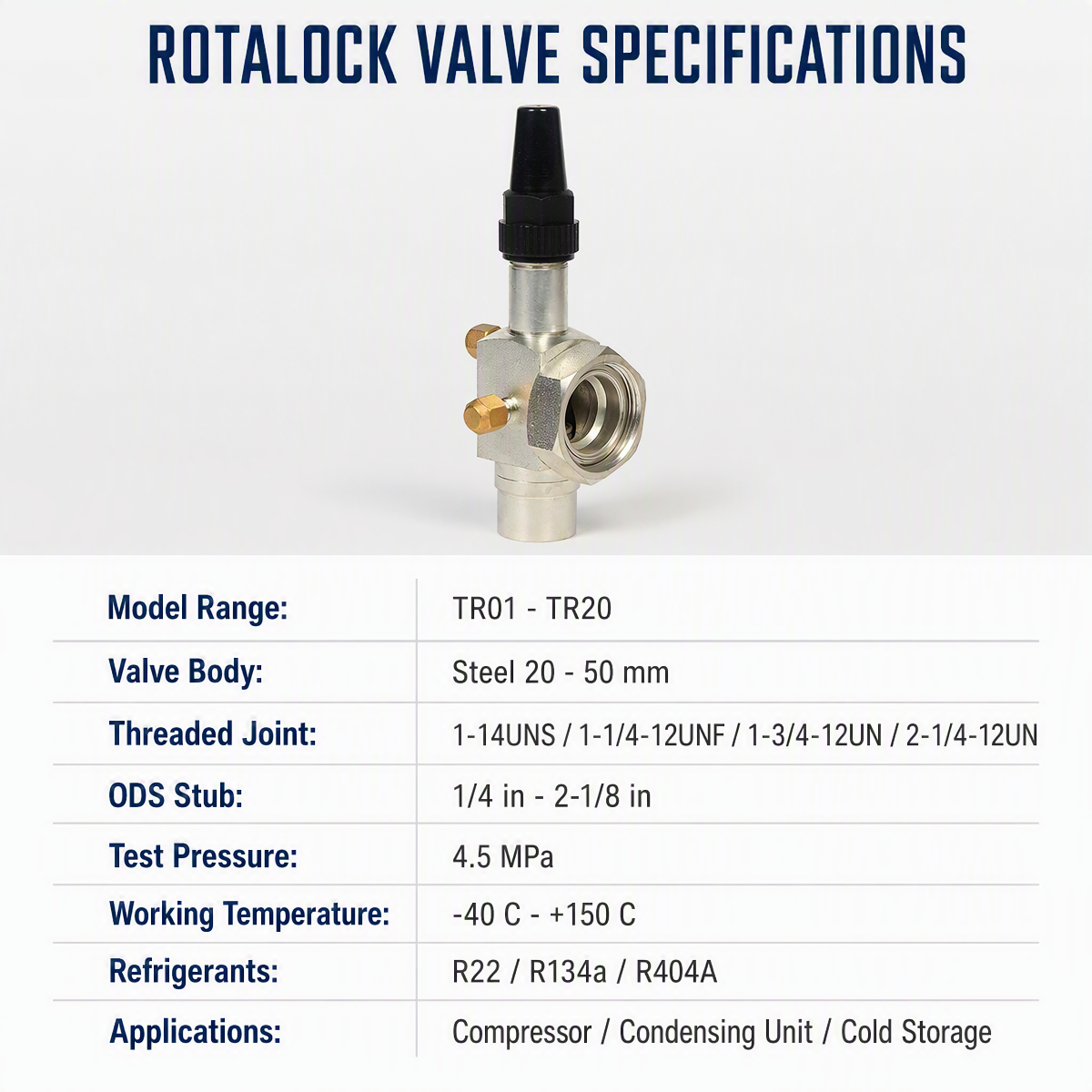

Product Range and Dimensions

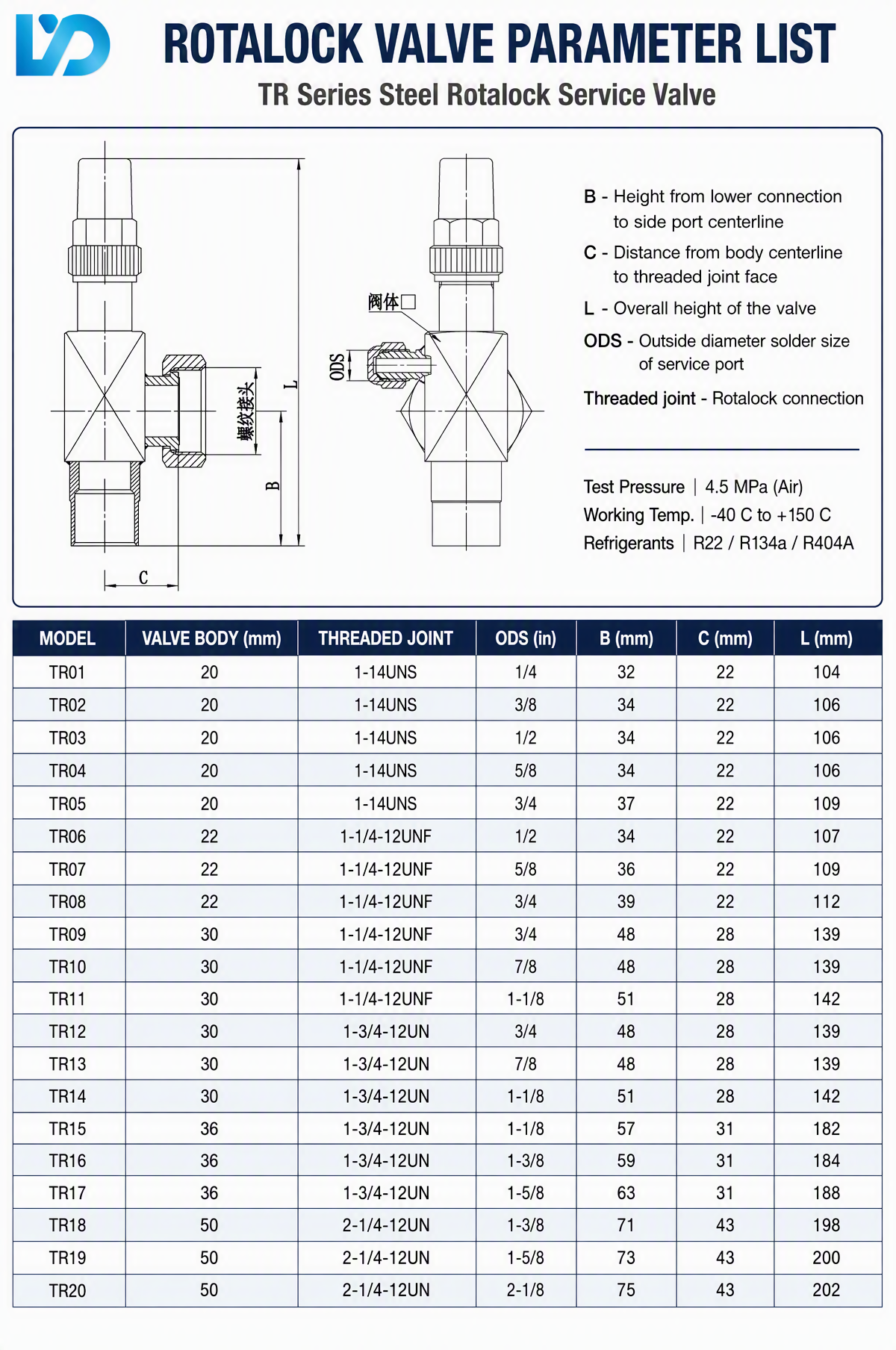

Models TR01 to TR20 cover square valve bodies from 20 x 20 mm to 50 x 50 mm, with rotalock threaded joints including 1-14UNS, 1-1/4-12UNF, 1-3/4-12UN and 2-1/4-12UN, and ODS stub tube sizes from 1/4 inch to 2-1/8 inches, matching most compressor service ports and common copper or steel line sizes.
Performance

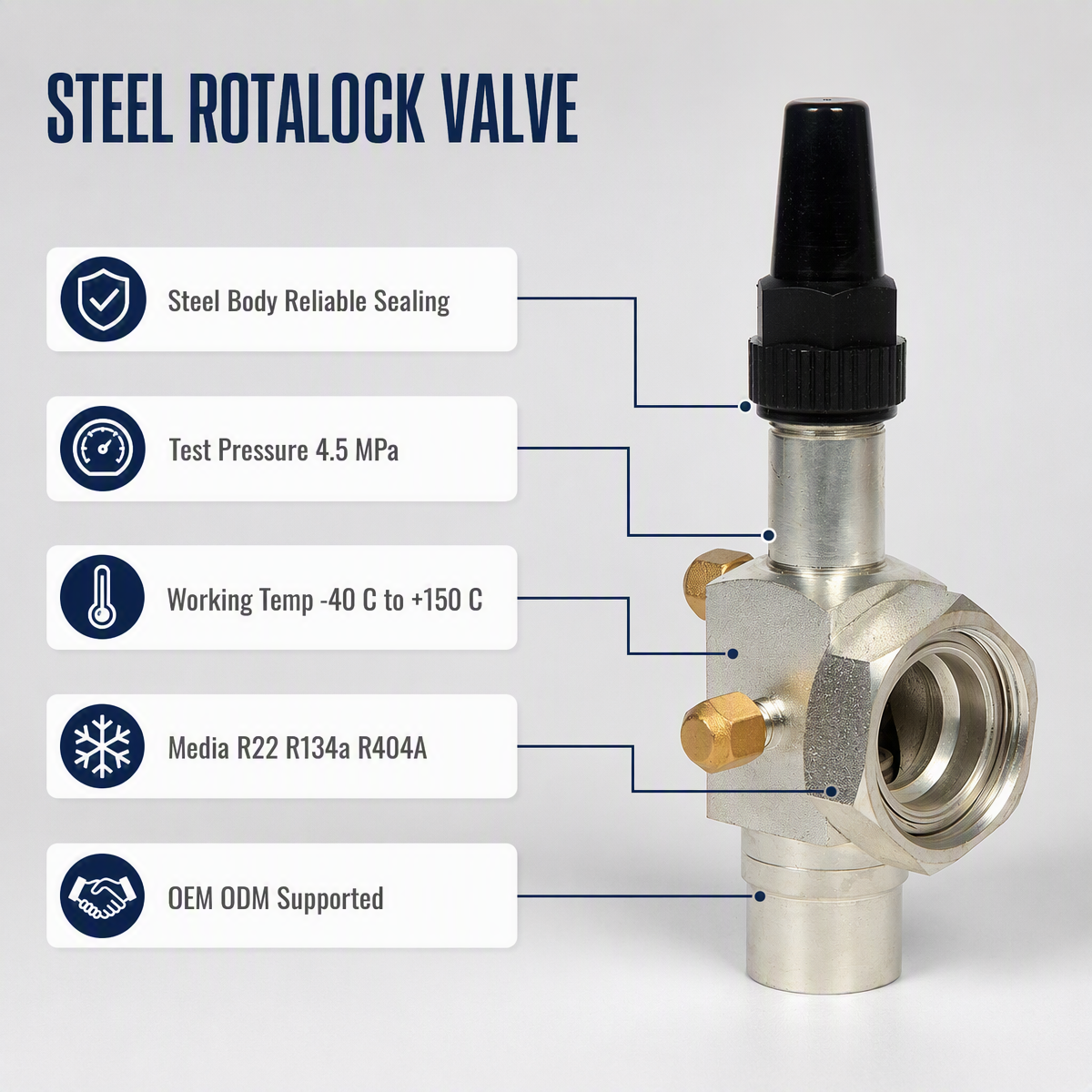

Test pressure is 4.5 MPa; working temperature range is -40 C to +150 C; suitable for R22, R134a, R404A and other common refrigerants. Precision machined seats and stem seals ensure dependable shut-off and long service life under industrial duty.
Applications
Semi-hermetic and screw compressor suction and discharge service; condensing units; cold room and cold storage refrigeration systems; commercial and industrial refrigeration plants; heat pump units.
Customization and Supply
OEM and ODM service is available, including custom body size, port configuration, surface treatment and private label packaging. Strict factory inspection before shipment and export standard packing protect the valves in transit.
As a professional refrigeration equipment manufacturer, we support bulk supply, fast delivery and responsive after-sales service. Please send your required model and quantity for a competitive quotation.

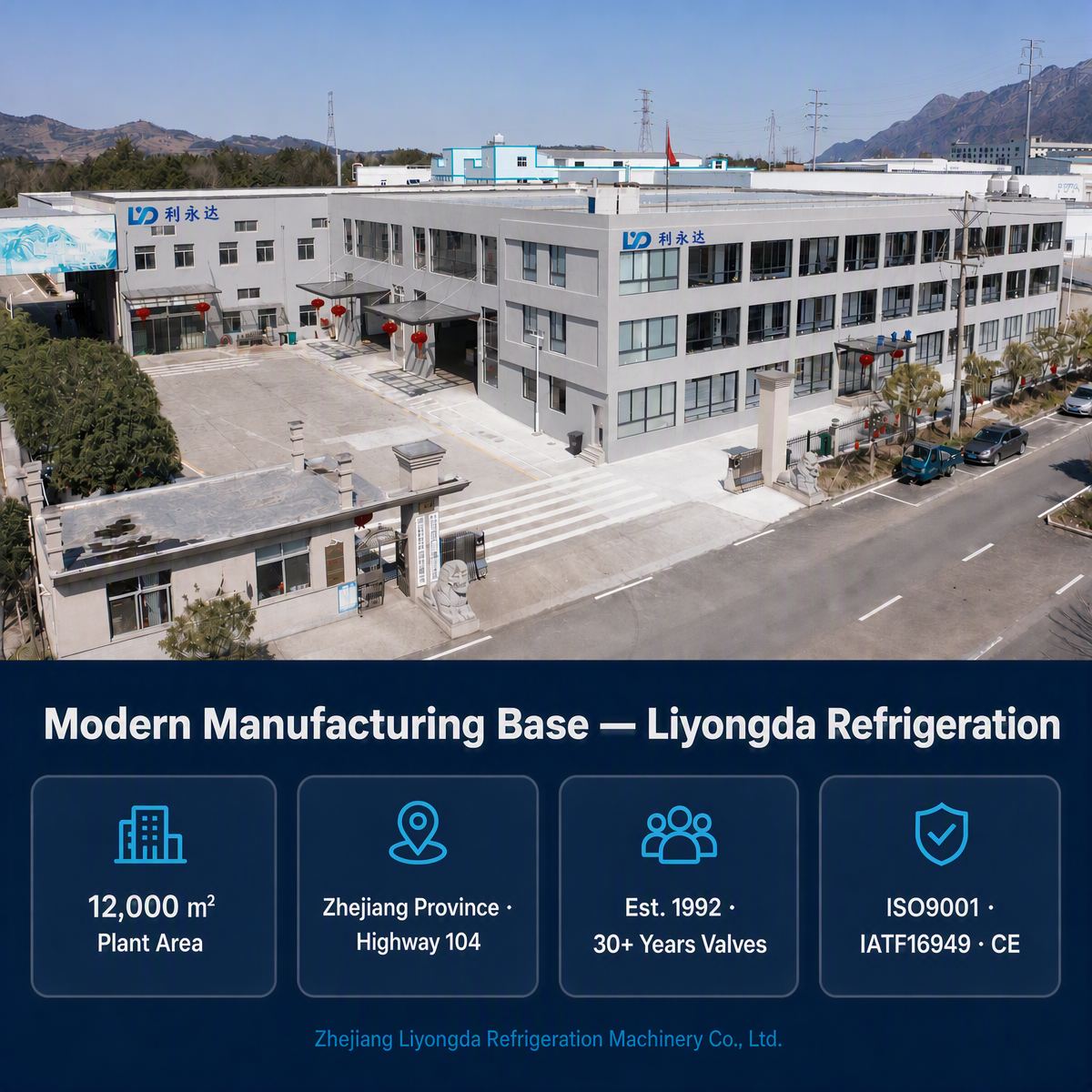

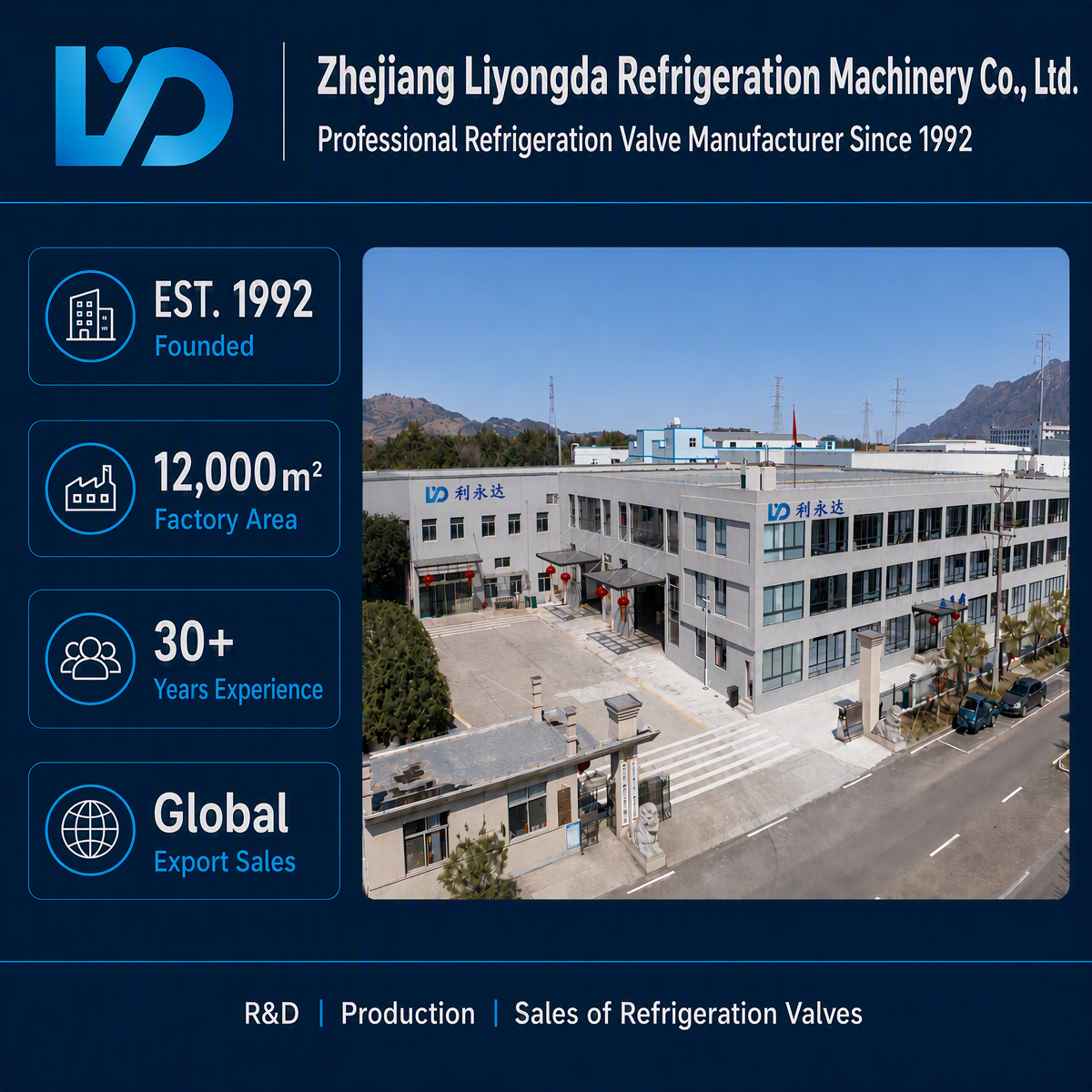

Zhejiang Liyongda Refrigeration Machinery Co., Ltd. is a professional valve manufacturer integrating production, R&D and sales. Founded in 1992, the company has over 30 years of experience dedicated to refrigeration valve manufacturing. The plant covers 12,000 square meters and is located at No.18 Yulin Road, Yulin Street, Xinchang County, Zhejiang Province, China, the national base of refrigeration components, about 1.5 hours by car from Hangzhou and Ningbo.
Main products: right-angle and straight-through stop valves, ball valves, check valves, relief valves, pressure maintaining valves, pressure regulating valves, oil temperature control valves, two-step open solenoid valves, rotalock valves and related fittings. They are widely used on semi-hermetic and screw refrigeration compressors, condensing units, cold room piping and commercial refrigeration systems.

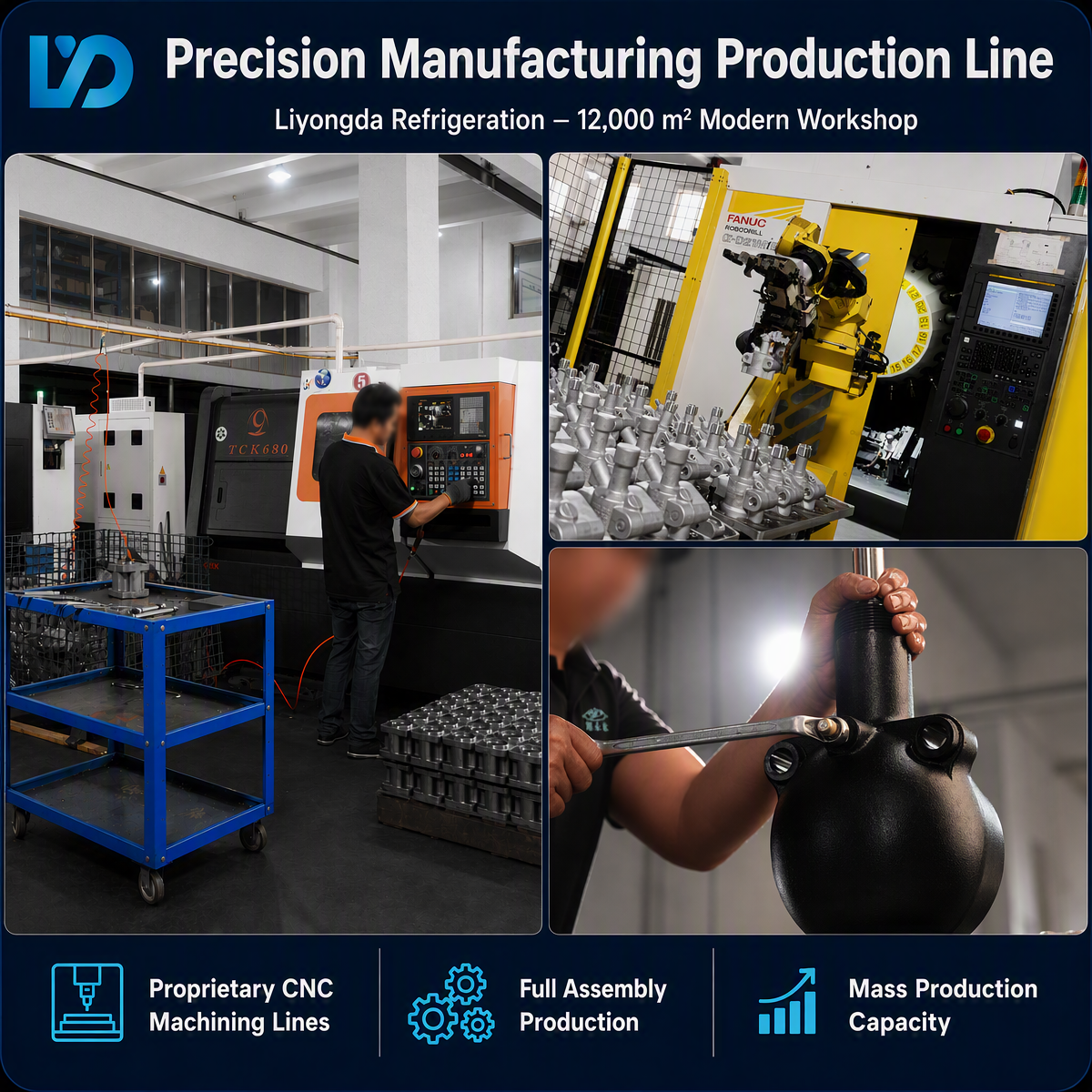

Equipped with advanced production lines, a professional technical team, precise testing instruments and strict inspection procedures, we can manufacture high-quality valves according to domestic and international standards. A complete quality management system is maintained and the company holds ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certificates, the TS pressure pipe manufacturing license, IATF 16949 and CE certification.
As a trusted supplier for many large and medium refrigeration enterprises in China, our valves are exported worldwide. OEM and ODM services are welcome, including customized specifications, packaging and branding. Please contact us for quotations or cooperation.
Company overview
Factory profile
Customization capabilities
Packaging & shipping specifications
FAQs
What is a rotalock valve, and where is it used?

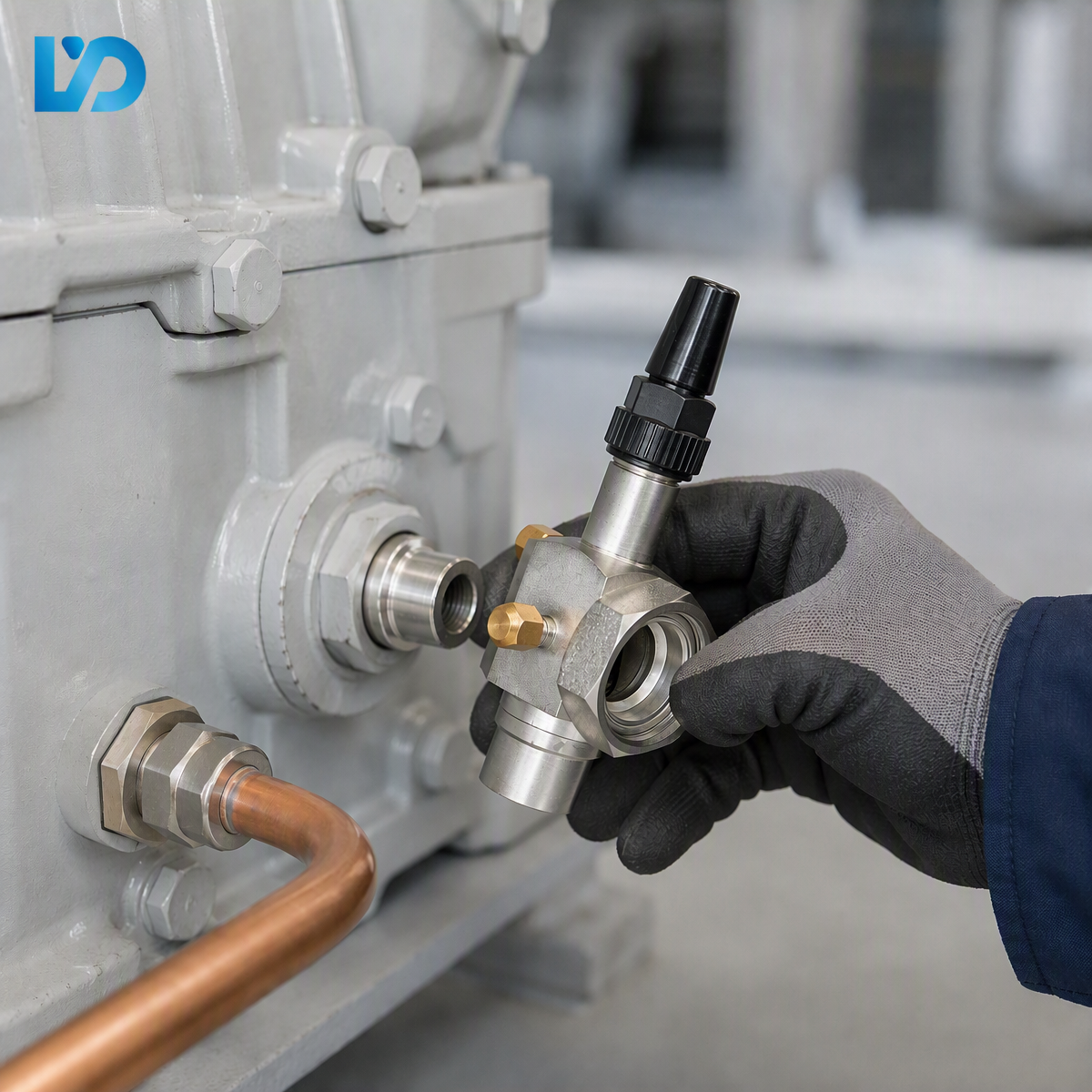

A rotalock valve is a shut-off / service valve with a Rotalock threaded connection. It is mainly installed on semi-hermetic and screw refrigeration compressors, condensing units and cold storage piping, used for refrigerant charging, pressure testing, isolating and maintaining the compressor without losing system refrigerant.
Which refrigerants and working conditions does this valve support?
The TR series Rotalock valve is suitable for R22, R134a, R404A and other common refrigerants, with a working temperature range of -40 C to +150 C and a body test pressure of 4.5 MPa. Please confirm compatibility of seals with the actual medium before ordering.
How do I select the right model from TR01 to TR20?
Models TR01 to TR20 cover valve bodies from 20 x 20 mm to 50 x 50 mm. Choose according to your compressor service port size, pipe diameter (ODS stub from 1/4 inch to 2-1/8 inches) and required threaded joint (1-14UNS, 1-1/4-12UNF, 1-3/4-12UN, 2-1/4-12UN). If unsure, send us the port size and pipe OD, and we will recommend the model.
What connection types are available?
The valve offers Rotalock threaded joints combined with ODS stub tube ends (for welding or flaring), covering common UN / UNS / UNF thread series, which match most semi-hermetic compressor service valves and line sizes.
What material is the valve body?

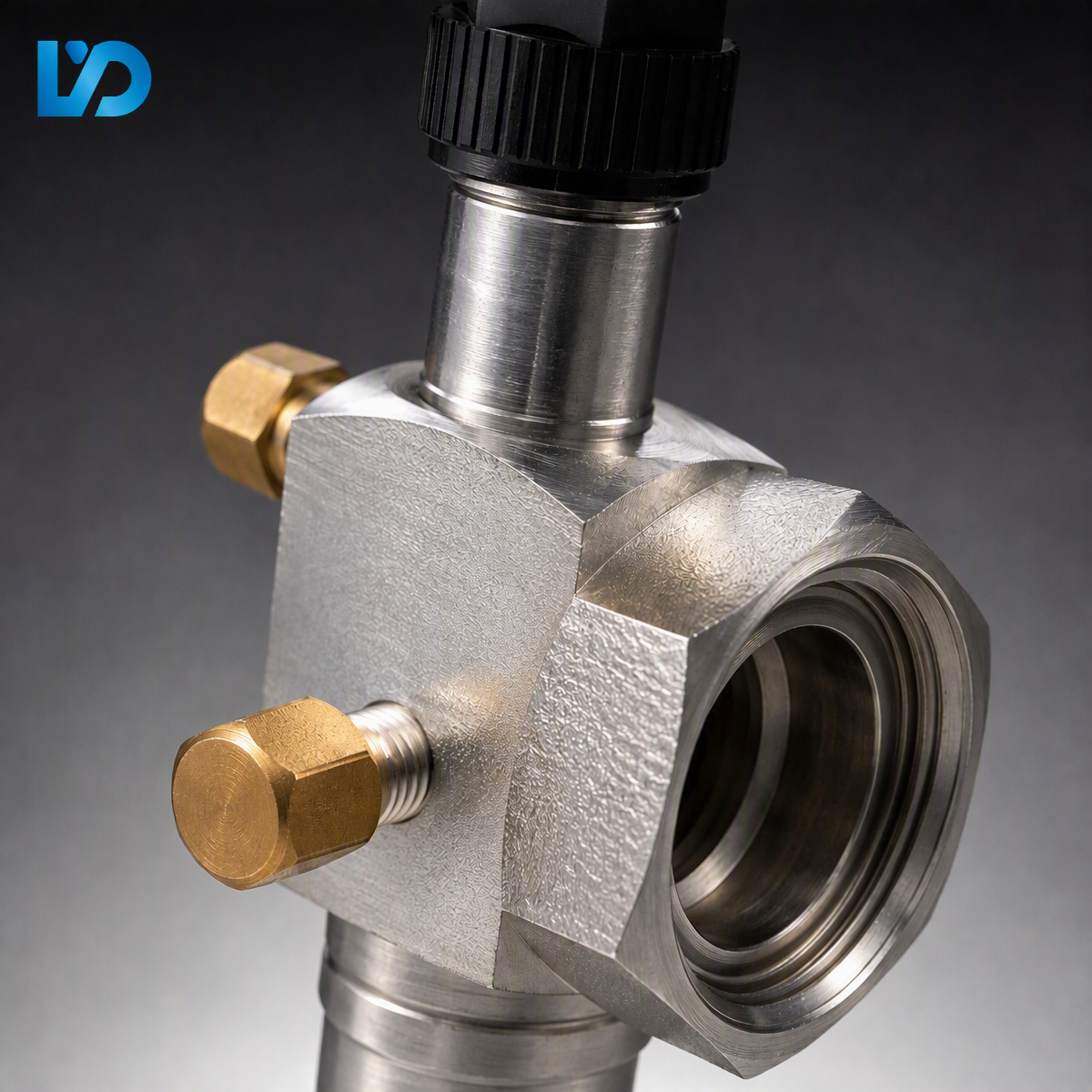

The valve body is made of steel with precision machined sealing surfaces and a corrosion resistant finish, giving reliable shut-off performance and a long service life in industrial refrigeration duty.
Can you provide OEM / ODM service?
Yes. We support OEM and ODM: custom body size, port configuration, surface treatment, private label, carton or wooden case packing, etc., according to your drawings and requirements. Minimum order and lead time are confirmed according to the configuration.
How is quality controlled and tested?
Each production batch is controlled under an ISO 9001 quality management system. Valves undergo pressure testing before delivery, and strict factory inspection is performed before shipment to ensure leak-free, reliable products.
What is the packaging, delivery and after-sales service?

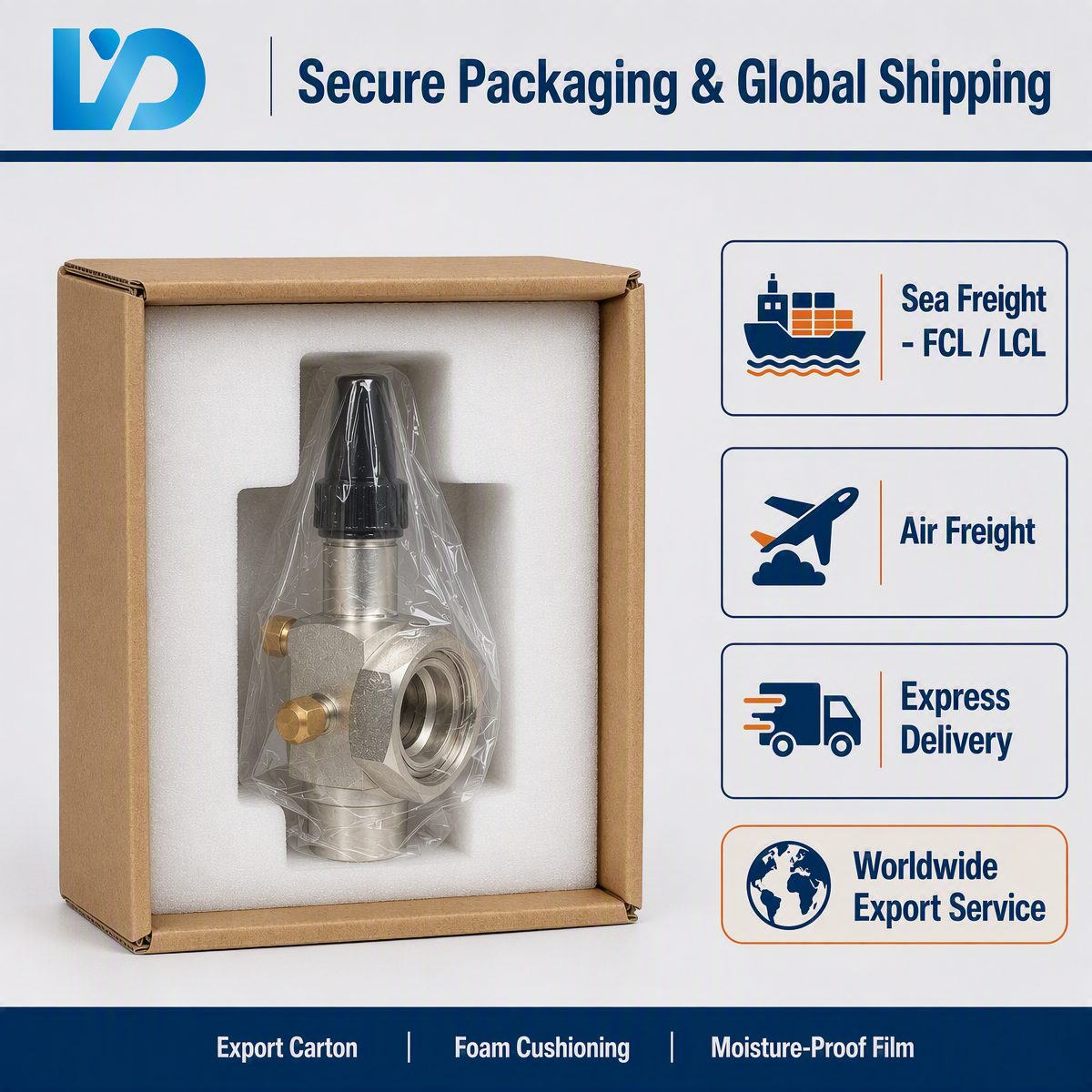

Export standard packing (individual protective packing plus cartons or wooden cases) protects the valves in transit. We ship by sea, air or express. After-sales service covers technical consultation, model selection support and quality issues handling; please contact our sales team for details.
