| Quantity: | |
|---|---|
YBF4TCS-8.2ZR
Blait
| Parameter | Details |
|---|---|
| Compressor Type | YBF4TCS-8.2ZR Medium Four-Cylinder Piston |
| Motor Power | 8HP / 5.5kW |
| Displacement (50Hz) | 41.33 m³/h |
| Cylinder Configuration | 4 cylinders (φ60mm bore, 42mm stroke) |
| Oil Injection Volume | 2.6L (forced-lubrication system) |
| Power Supply | 380-480V / 3-phase / 50-60Hz |
| Max Operating Current | 17A |
| Crankcase Heater | 120W / 220V pre-installed |
| Weight | 122kg (including oil) |
| Suction Port (SL) | 35mm (13/8") |
| Discharge Port (DL) | 28mm (11/8") |
| Cooling Capacity (R22) | 5.22–30.7 kW (condensing temp 30–50°C) |
| Cooling Capacity (R404A/R507A) | 2.96–33.05 kW |
| Connection Ports | HP/LP lines, oil fill/drain, sensors, electronic hydrojet |
Core Specifications
Operates with 8HP/5.5kW motor power.
Delivers 41.33 m³/h displacement at 50Hz.
Features 4 cylinders (φ60mm bore, 42mm stroke).
Requires 2.6L oil volume for forced-lubrication.
Compatible with 380-480V/3-phase/50-60Hz power supply.
Performance Data
• R22 Refrigerant:
Cooling capacity ranges 5.22–30.7 kW (condensing temp 30°C to 50°C).
Power consumption stays below 9.4kW across operating conditions.
• R404A/R507A Refrigerant:
Provides 2.96–33.05 kW cooling capacity.
Maintains stable power draw under -45°C to 7.5°C evaporating temps.
Design Features
Forced-lubrication system ensures optimal component lubrication.
Compact design with 122kg total weight (including oil).
Pre-installed 220V crankcase heater (120W) for cold-start readiness.
Connection Configuration
• SL suction port: 35mm (13/8")
• DL discharge port: 28mm (11/8")
• Labeled ports for high/low-pressure lines, oil filling/draining, and sensor integration.
Industrial Applications
Suitable for medium-duty refrigeration systems, cold storage, and industrial cooling setups.
Compatible with R22 and R404A/R507A refrigerants for flexible deployment.
All technical drawings and performance curves available upon request.
Contact Blait for customized configuration support.
The YBF4TCS-8.2ZR Medium Four-Cylinder Piston Compressor combines compact engineering with high-performance operation. Designed for reliability and energy efficiency, it integrates advanced structural optimizations, temperature monitoring systems, and noise reduction technologies. Below are its key features:
Compact and lightweight design
Reduced dimensions and weight simplify installation and transportation.
High energy efficiency
Optimized valve plates, minimized dead space gaps, and heavy-duty motors maintain efficient operation.
Enhanced structural durability
High-precision machining for critical components improves strength and longevity.
Low vibration and friction
Circular compressor design and mass balance optimization reduce noise and mechanical oscillation.
Electronic motor protection
PTC sensors monitor motor winding and exhaust temperatures to prevent overheating.
High cooling capacity with improved COP
Delivers increased refrigeration output and higher Coefficient of Performance (COP).
Precision-machined components
Main parts (block, covers, cylinder heads) are processed via CNC machining centers for accuracy.
Two-stage capacity control
Allows 50% or 100% load adjustment to match operational demands.
Optimized bearing lubrication
Reduces seizure risks through improved oil distribution in bearing systems.
Low-friction piston design
Thin piston rings and minimized clearance volume decrease power loss.
Honeycomb exhaust silencer
Hexagonal cell structure in cylinder heads absorbs exhaust noise.

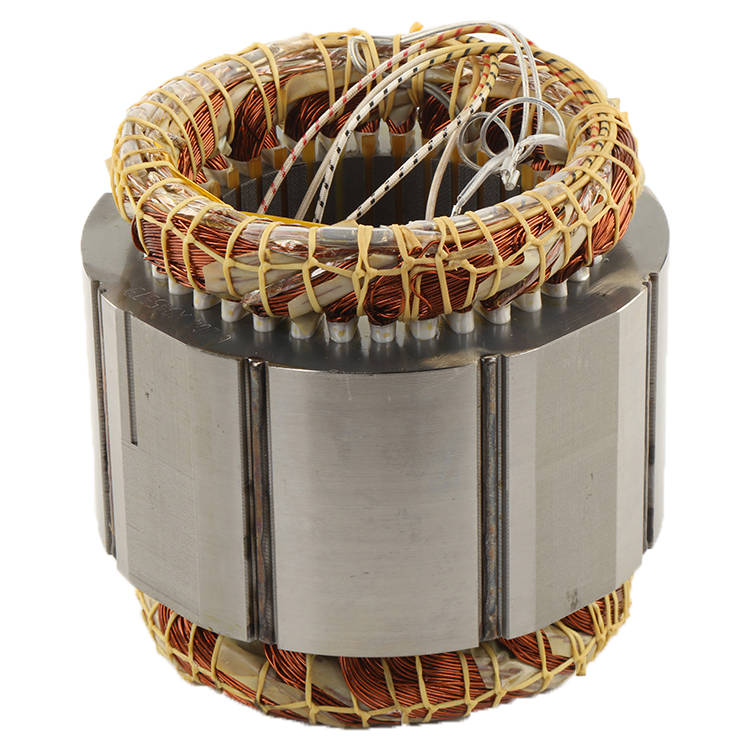

Reinforced motor construction
Upgraded stator/rotor design enhances efficiency and overload resistance across operating ranges.
Zhejiang Briliant Refrigeration Equipment Co., Ltd. is a leader in refrigeration compressor manufacturing, combining innovation, precision engineering, and rigorous quality standards. Below are its core strengths:
Integrated R&D and Production
The company operates a full-cycle system covering design, R&D, production, and sales. Its Hangzhou-based R&D center employs over 100 staff, including 24 engineers and researchers, to drive product innovation and quality enhancements.
Precision Manufacturing Technology
A dedicated production line specializes in high-accuracy compressor body machining. Advanced processes ensure consistent efficiency and durability across products.
Certifications and Industry Affiliation
Complies with ISO9001, ISO14001, ISO45001, and holds a National Industrial Product Production License. Recognized as a member of the China Refrigeration Society.
Academic Collaboration
Partners with Xi’an Jiaotong University to optimize screw rotor profiles, improving compressor energy efficiency and operational performance.
Performance Testing Infrastructure
Multiple testing stations evaluate compressors under varied conditions. Uses calibrated, high-precision imported instruments to validate compliance with industry benchmarks.
Quality Assurance Systems
Implements scientific testing protocols and component-level innovations to enhance mechanical reliability, lifespan, and operational stability.
These capabilities position Zhejiang Briliant as a trusted provider of high-performance refrigeration solutions globally.
Answer:
Max Pressure: 8.2 bar (120 psi)
Displacement: 4-cylinder design, ~210 L/min (7.4 CFM)
Power Source: Electric motor (specify voltage based on regional standards).
Extension Arm Load Capacity: Up to 15 kg (33 lbs) per arm.
Answer:
Ideal for medium-duty industrial tasks:
Pneumatic tool operation (e.g., impact wrenches, sanders).
HVAC systems.
Automotive repair (tire inflation, painting).
Assembly lines with multi-point air requirements.
Answer:
Extension arms:
Enable precise positioning of tools in confined spaces.
Reduce hose clutter by mounting tools directly.
Support simultaneous multi-tool use (ensure total load ≤ specified limit).
Answer:
Daily: Check oil levels, drain condensate from tanks.
Monthly: Inspect belts, tighten bolts, clean air filters.
Annually: Replace piston rings/seals, lubricate extension arm joints.
Answer:
Ensure arms are securely locked before operation.
Avoid exceeding load limits to prevent mechanical failure.
Inspect arms for wear/cracks regularly.
Answer:
No. Duty cycle is 60% (6 mins/hour at max load). Prolonged use may overheat the motor. Allow cooldown periods between cycles.
Answer:
Check for air leaks in hoses/connections.
Clean/replace clogged air filters.
Verify piston seals and valves for wear.
Ensure extension arm joints are not obstructing airflow.
