Ductile Cast Iron Flanged Globe Valve for Screw Compressor Refrigeration Systems

Product Highlights

1. The Largest Bore In The Screw Compressor Series: J2BS/126 is the 5 inch size closing our screw compressor valve series, which runs J2BS/40 (1.5 inch), J2BS/60 (2 inch), J2BS/70 (2.5 inch), J2BS/80 (3 inch) and J2BS/105 (4 inch) up to the 126. One supplier therefore covers the whole port range on a screw refrigeration plant, on one valve make and one spares list.

2. Eight-Bolt Flanged Mounting: The smaller sizes in this series clamp down on a four-bolt square base. At 5 inch the valve moves to a true flanged joint - the catalogue prints eight bolt positions on a 194 mm flange datum, with eight 18 mm clearance holes and eight M16 studs. That is a stiffer, more evenly loaded joint, which is what a big compressor port needs to hold its seal under vibration and repeated service cycles.

3. Pressure and Temperature Headroom: Every valve in the series is factory tested at 4.5 MPa and is rated for a working temperature range of -30 C to +150 C. The same valve can therefore serve low temperature racks and warm discharge and oil lines, which keeps purchasing and stock simple across a whole refrigeration project instead of splitting it by temperature zone.

4. Broad Fluorocarbon Refrigerant Coverage: The series is specified for R22, R507, R407C, R404A and R134a together with the various refrigeration oils used with them. That lets you fit the J2BS/126 to an older R22 plant, a modern R404A or R507 rack, or an R134a unit without changing the piping layout or the flange geometry.

5. Two Body Heights, Real Drawings: The catalogue lists the 5 inch valve in two body variants with overall heights of 464 mm and 519 mm, so you can match the stem height to the clearance above your compressor port instead of working the pipework around the valve. Liyongda has made refrigeration valves for over thirty years, sends a dimension drawing with every quotation, welcomes OEM and ODM orders, and ships in export cartons with foam protection.

PRODUCT OVERVIEW

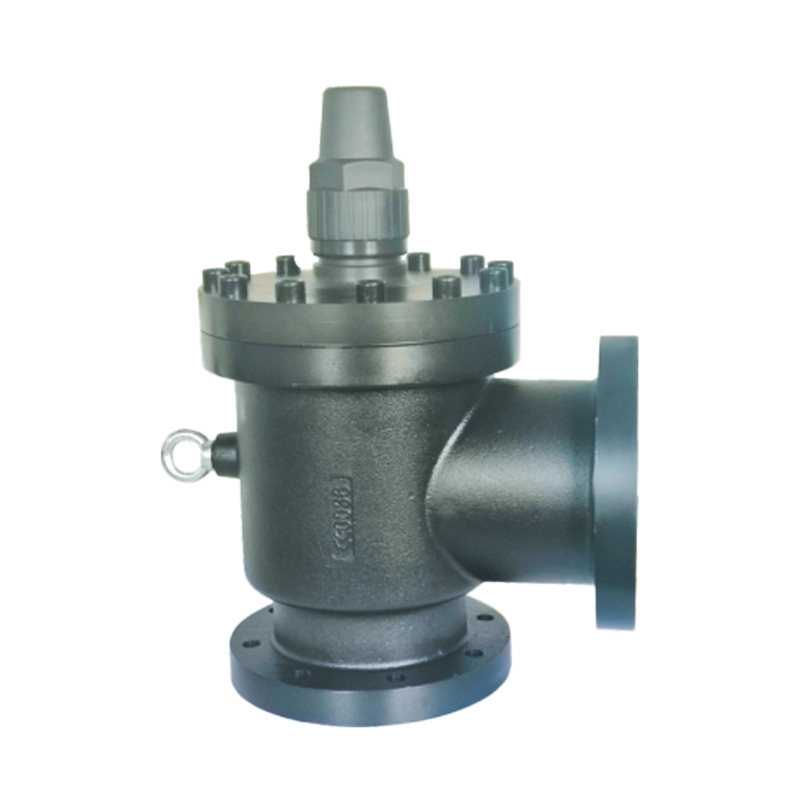

The J2BS/126 is the 5 inch angle-pattern service valve in Liyongda's screw compressor valve series. It is the largest bore listed in a range that runs from J2BS/40 (1.5 inch) to J2BS/105 (4 inch), built for the big suction and discharge ports fitted to semi-hermetic screw refrigeration compressors. Where the smaller sizes in this series clamp down on a four-bolt square base, the 126 moves to an eight-bolt flanged joint, so the valve bolts to a large port with a rigid, evenly loaded connection instead of a compact mounting pad.

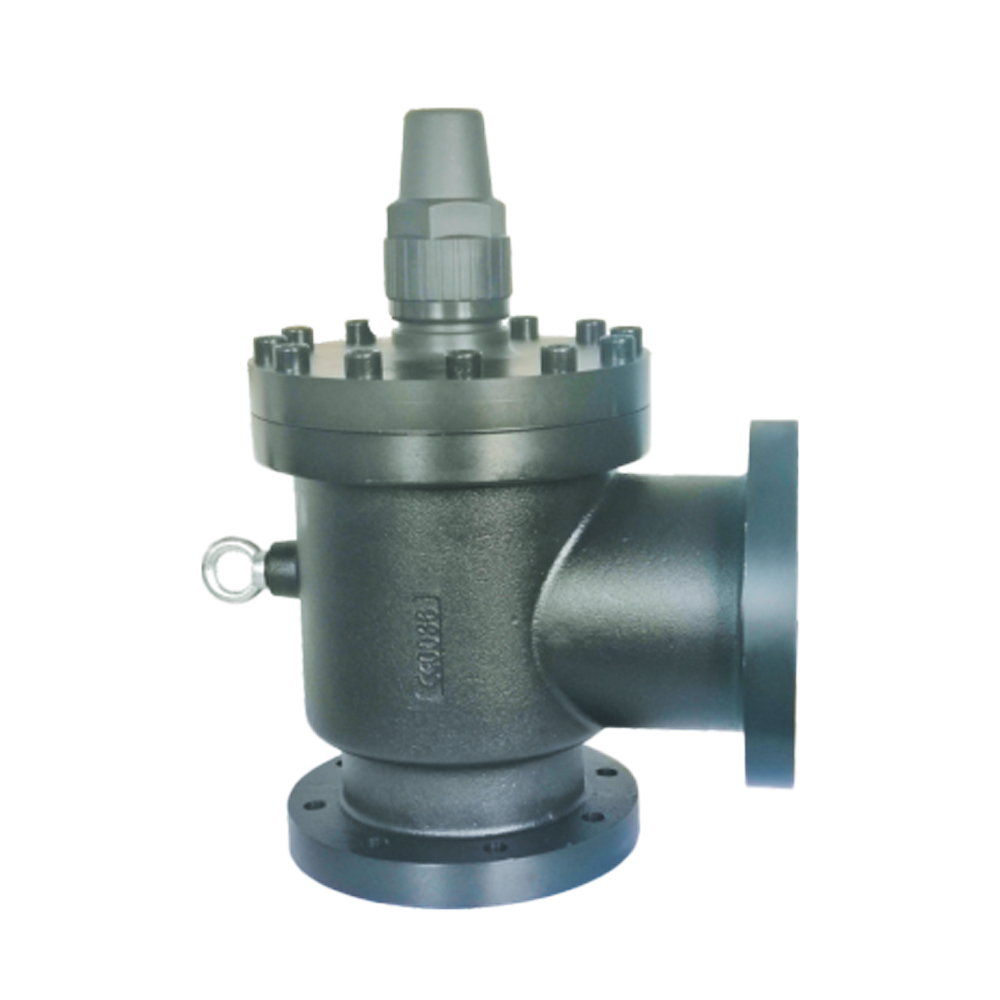

Each unit is factory tested at 4.5 MPa, works from -30 C to +150 C, and is specified for R22, R507, R407C, R404A and R134a together with the refrigeration oils used with them. The body is ductile cast iron with a painted finish, as shown in the photographs.

KEY FEATURES

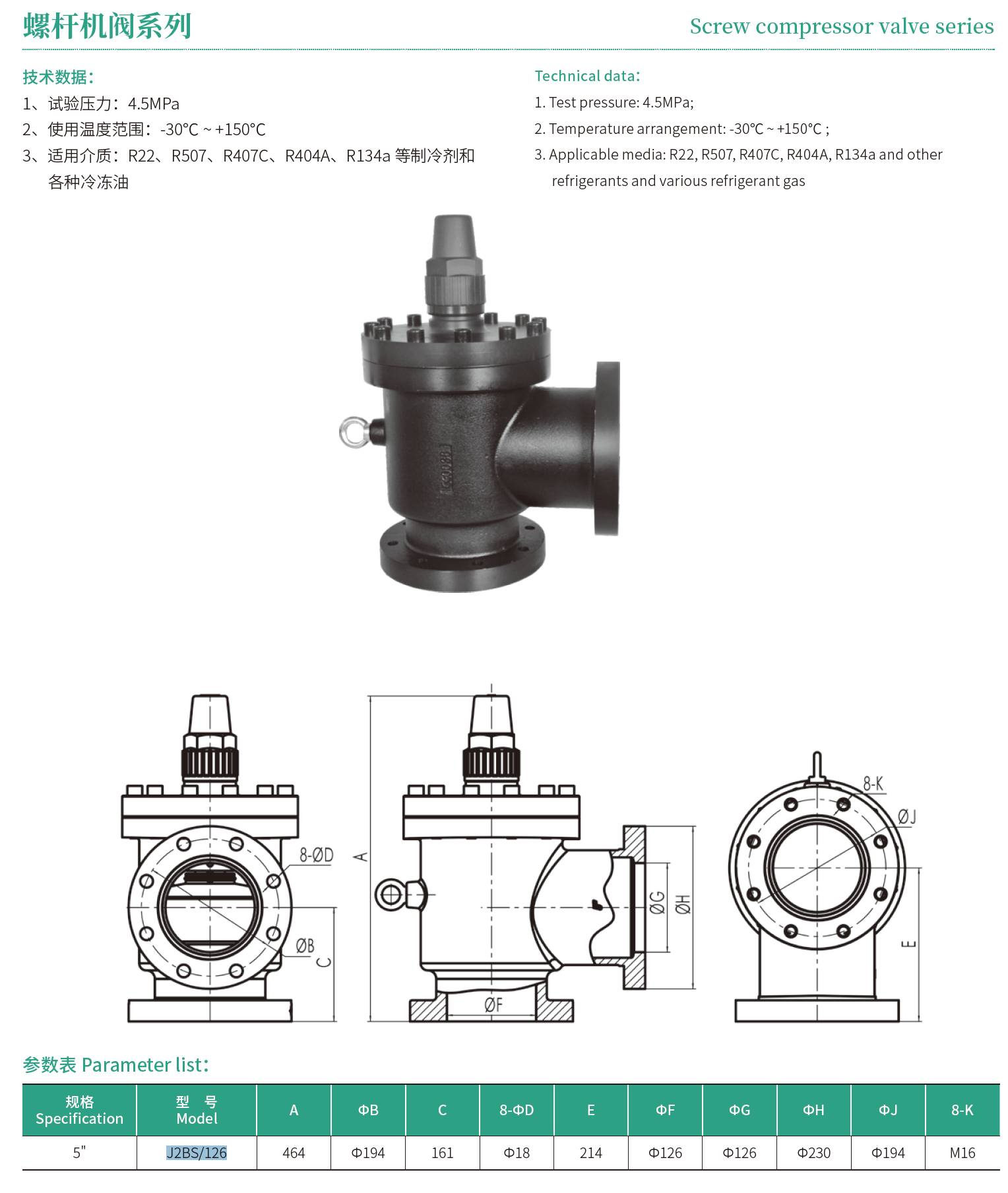

Eight-bolt flanged mounting: eight 18 mm clearance holes and eight M16 stud positions on a 194 mm flange datum, replacing the four-bolt square base used on the smaller sizes in this series.

Largest bore in the series: a 5 inch specification that closes the J2BS range, so one valve family covers a whole screw plant from 1.5 inch through to 5 inch.

4.5 MPa factory test pressure: covers normal refrigeration operating pressure with margin left for commissioning and system pressure testing.

Wide working temperature window: -30 C to +150 C, which lets the same valve sit on a low temperature rack and on a warm discharge or oil line.

Fluorocarbon refrigerant coverage: R22, R507, R407C, R404A and R134a, plus various refrigeration oils, so an older R22 plant and a modern R404A or R507 rack can share one valve type.

Two body heights: overall dimensions of 464 mm and 519 mm are both listed, so you can match stem height to the clearance available above the compressor port rather than working the pipework around the valve.

SPECIFICATIONS

APPLICATIONS

Screw refrigeration compressor installations in cold storage warehouses, food processing and freezing plants, and industrial process cooling, where the valve acts as the isolation and service point on the compressor suction and discharge connections.
