What is this valve used for?

It is a service valve for screw refrigeration compressors, installed at the compressor service connection for system access and maintenance.

What is the test pressure and operating temperature?

Test pressure is 4.5 MPa; the working temperature range is -30 C to +150 C.

Which refrigerants are supported?

R22, R507, R407C, R404A, R134a and various refrigerant oils.

What material is the valve made of?

Cast iron body with a bolted square flange base.

Which sizes are available?

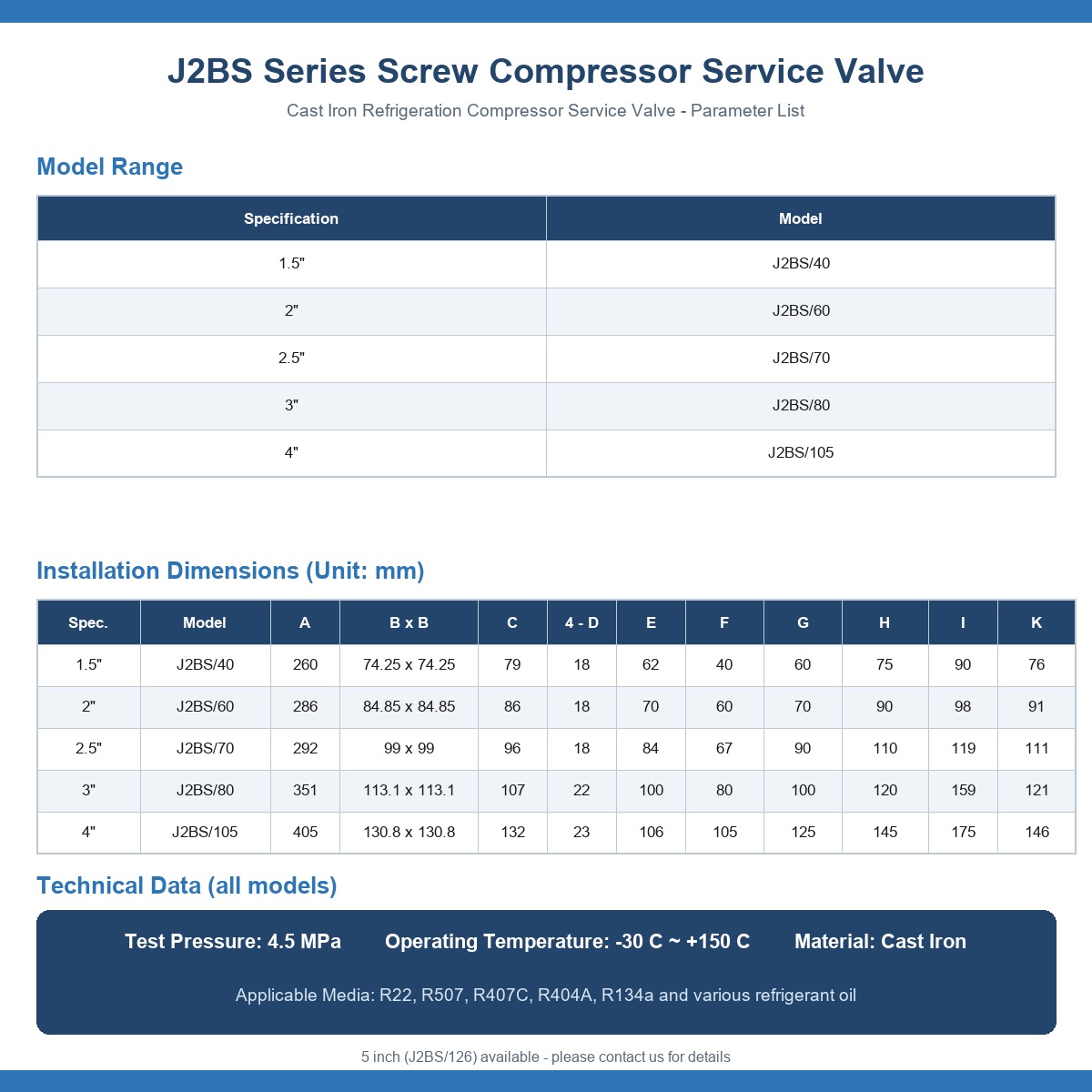

1.5 inch to 4 inch (J2BS/40, J2BS/60, J2BS/70, J2BS/80, J2BS/105); 5 inch (J2BS/126) available on request.

How do I choose the right size?

Please provide your screw compressor model and the connection size; we will recommend the matching J2BS model and send the installation dimensions.

Do you accept OEM or custom orders?

Yes, OEM and ODM are welcome, including customized specifications, packaging and branding.

What after-sales support do you provide?

Technical guidance for installation and maintenance, plus spare parts support; warranty terms are confirmed in the contract.

Home / Products / Compressor Spare Parts / LIYONGDA Ductile Iron Globe Valve for Refrigeration Compressor Systems

Share to:

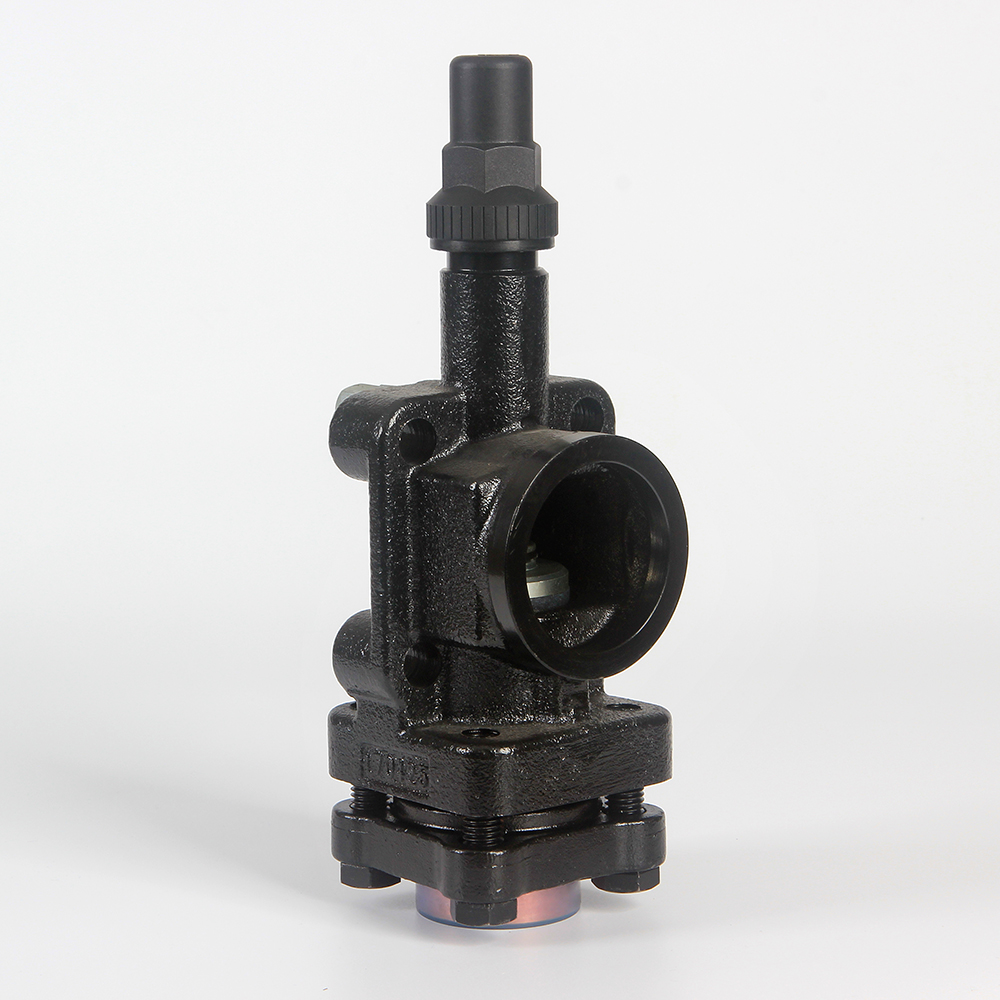

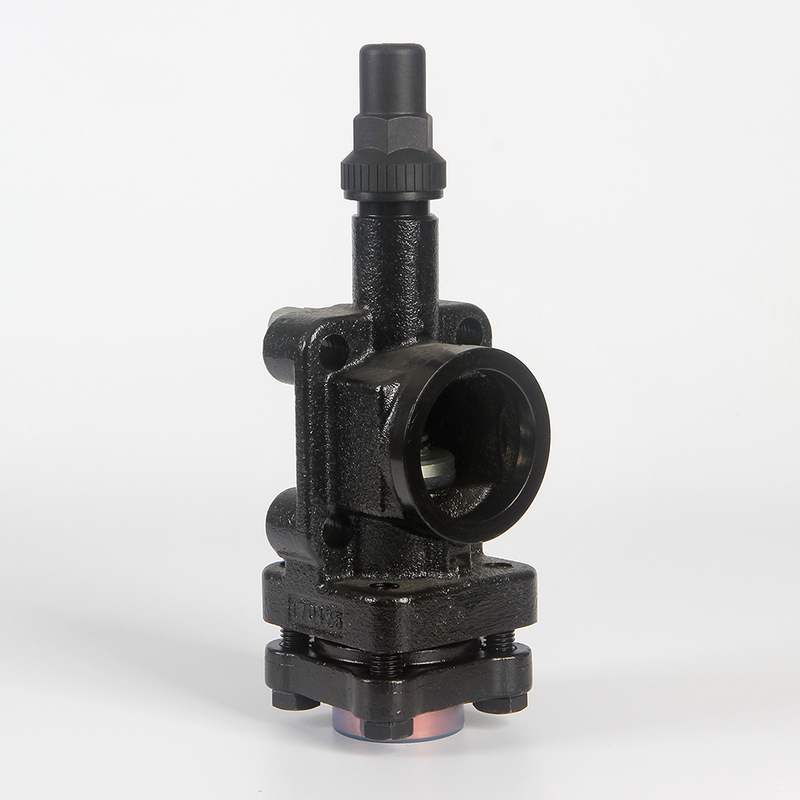

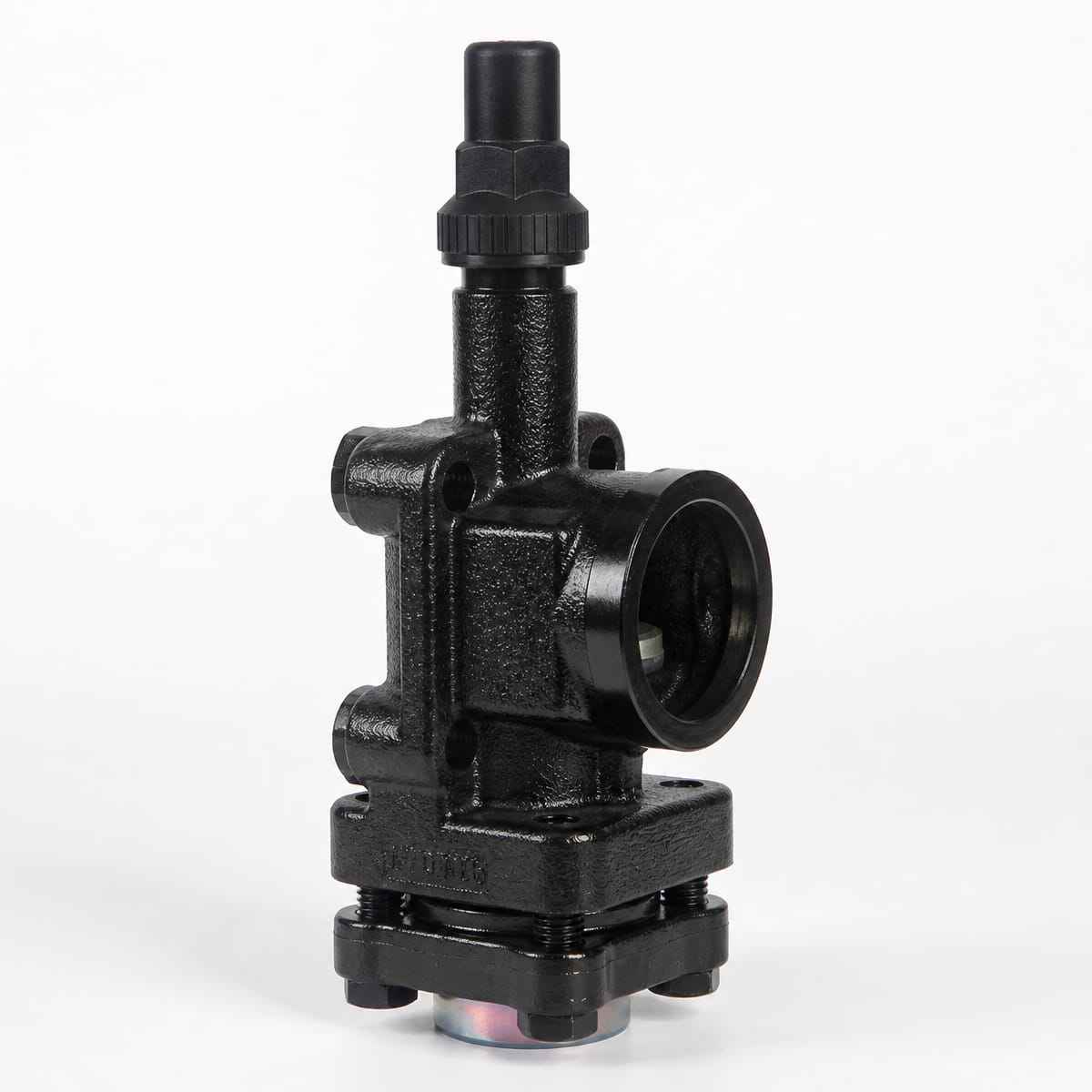

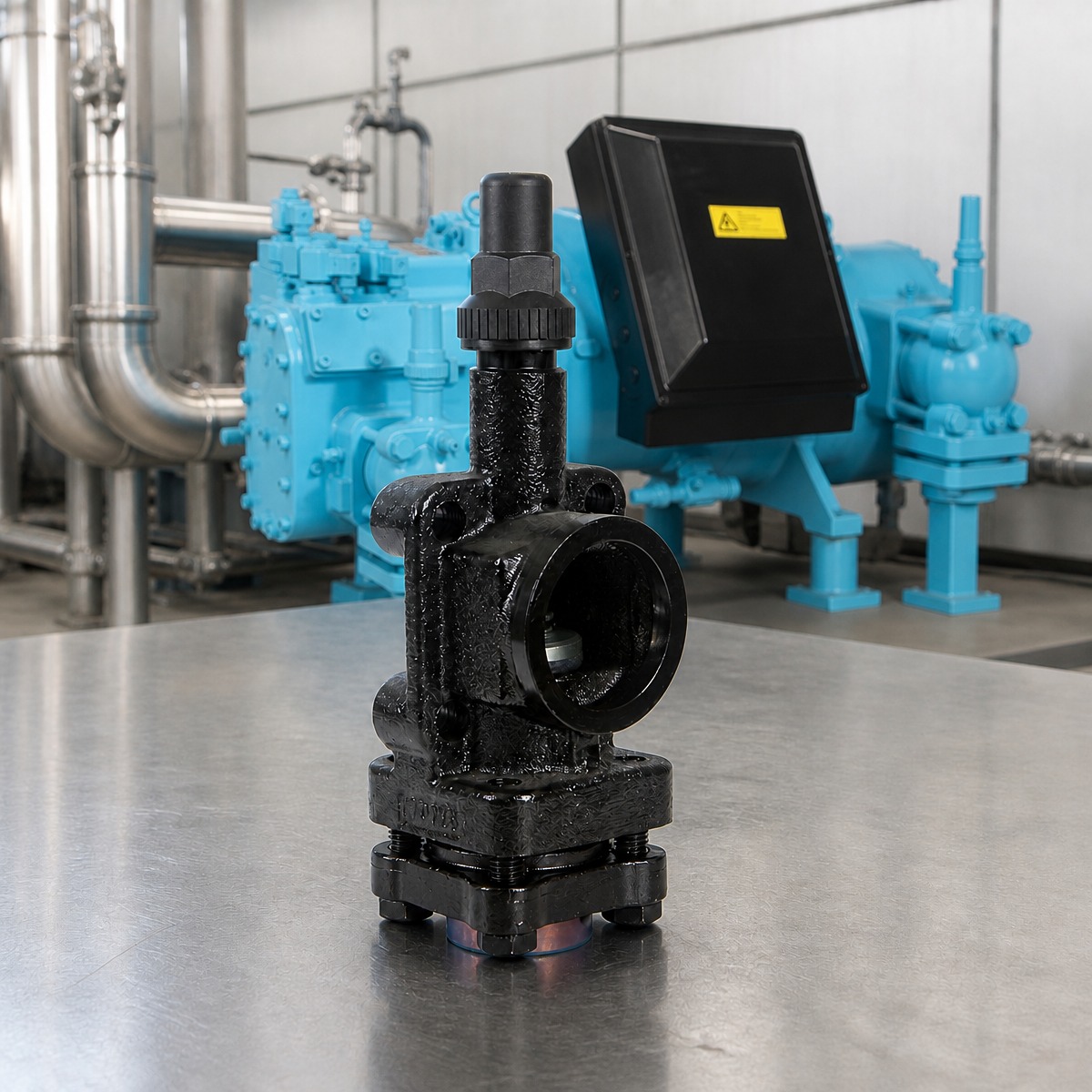

LIYONGDA Ductile Iron Globe Valve for Refrigeration Compressor Systems

The LIYONGDA Ductile Iron Globe Valve for Refrigeration Compressor Systems is a durable and reliable refrigeration valve designed for refrigerant flow control and shut-off applications. Manufactured from high-quality ductile iron, the valve offers excellent mechanical strength, pressure resistance, and durability, making it suitable for demanding refrigeration operating conditions.

Designed for refrigeration compressor systems, this globe valve provides reliable isolation and control of refrigerant flow during normal operation, equipment maintenance, and system servicing. Its robust construction and dependable sealing performance help reduce leakage risks and improve the overall safety and stability of refrigeration systems.

The valve is suitable for industrial refrigeration equipment, refrigeration compressor systems, cold storage facilities, food processing refrigeration, and other cooling applications. With LIYONGDA manufacturing expertise and a 1-year warranty, it provides a dependable valve solution for refrigeration equipment manufacturers, system integrators, and maintenance professionals.

Availability:

Quantity:



Inquire Add to Basket 天猫购买

Model:
J2BS
Brand:
Liyongda

Highlights at a glance

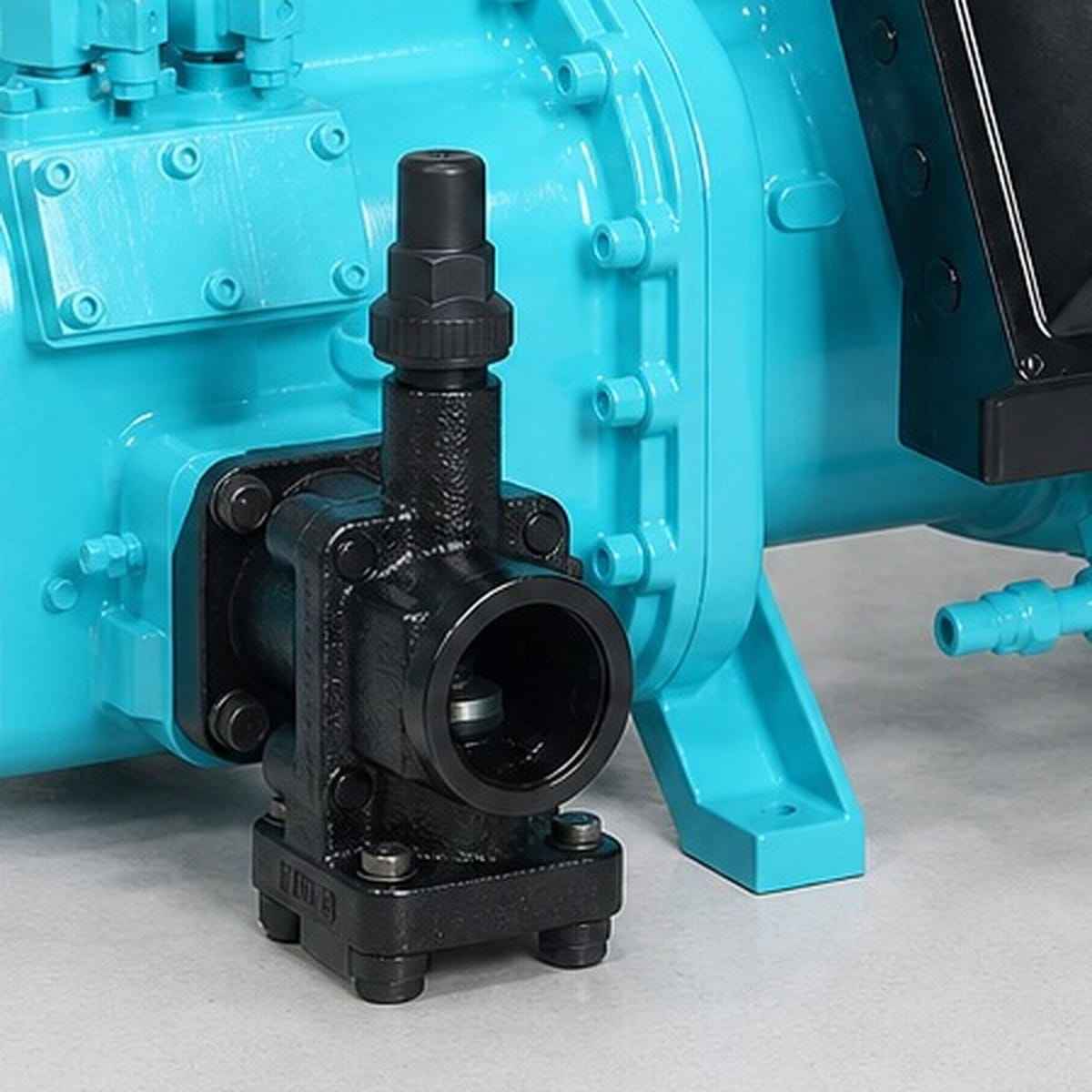

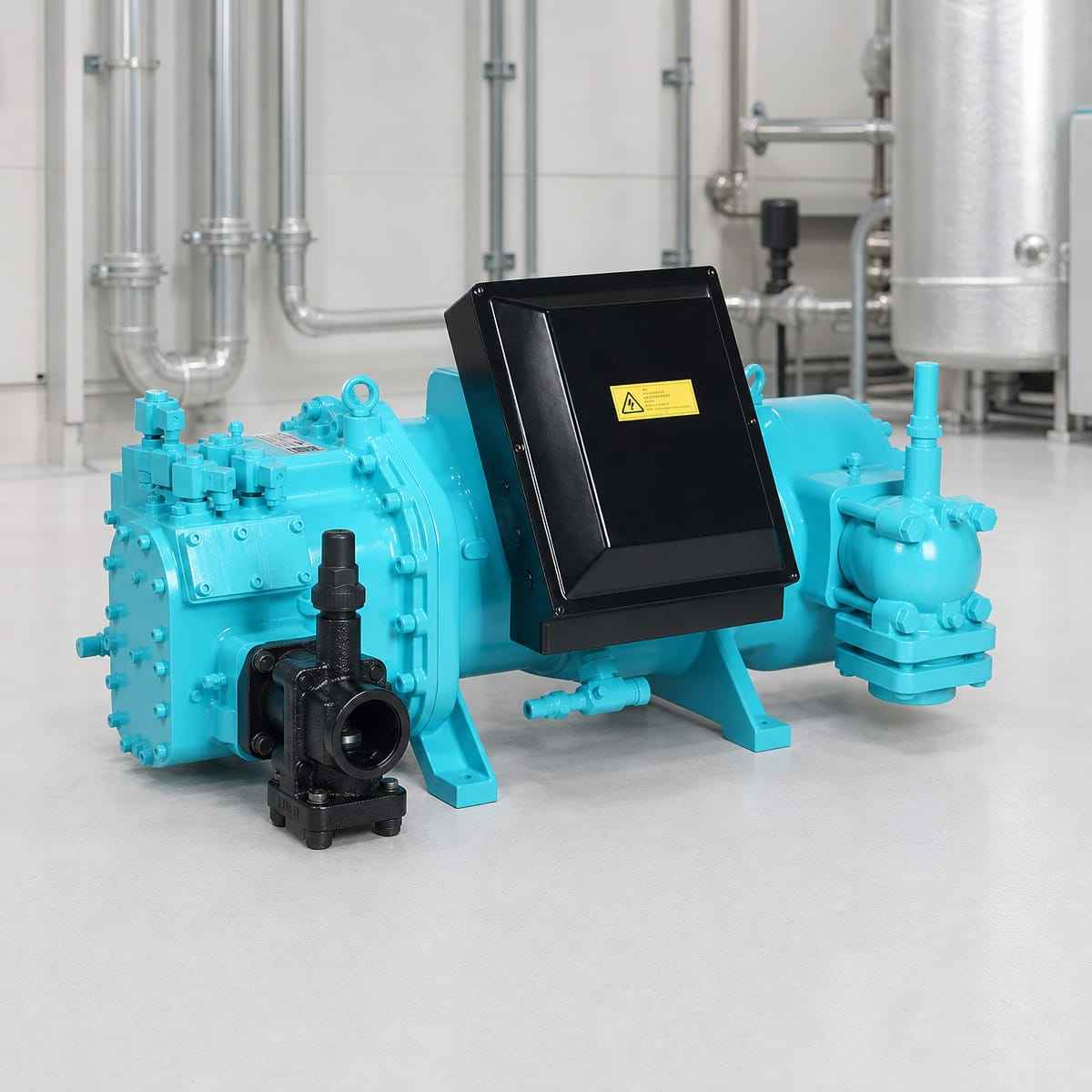

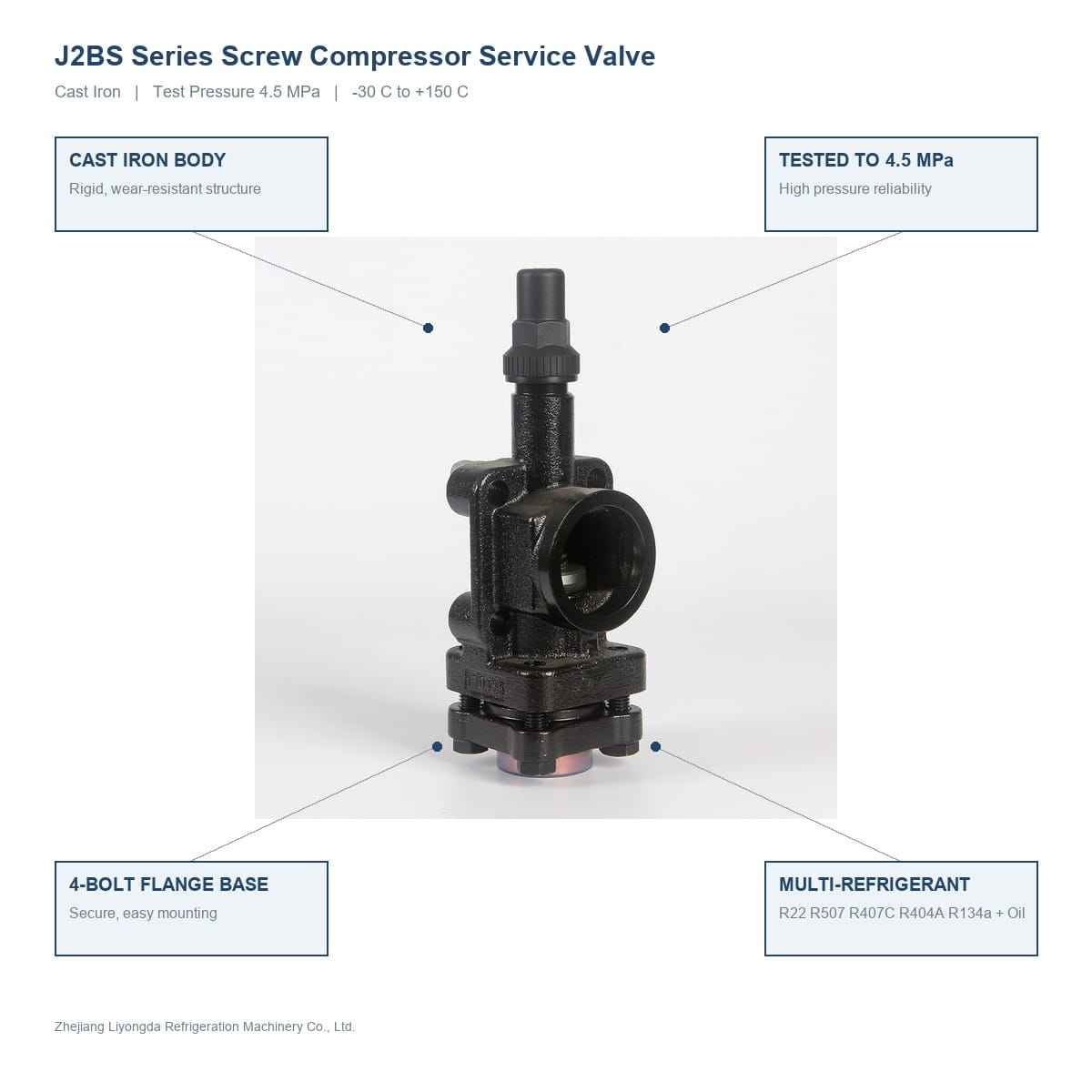

Purpose-Built for Screw Compressors: The J2BS service valve is designed for the service connection of semi-hermetic screw refrigeration compressors. Its compact vertical body and bolted square flange base seat directly on the compressor service port, giving engineers a reliable access point for pressure testing, charging, recovery and routine inspection without taking the machine apart.

Pressure and Temperature Headroom: Each valve is factory tested at 4.5 MPa and works from -30 C to +150 C, covering both low temperature cold storage circuits and hot refrigerant oil lines, so one valve family stays flexible across different plant conditions and seasonal loads.

Broad Refrigerant Coverage: The body is compatible with R22, R507, R407C, R404A and R134a as well as various refrigerant oils, which lets you match the valve to older R22 plants and newer R404A or R507 systems without changing the installation layout or port spacing.

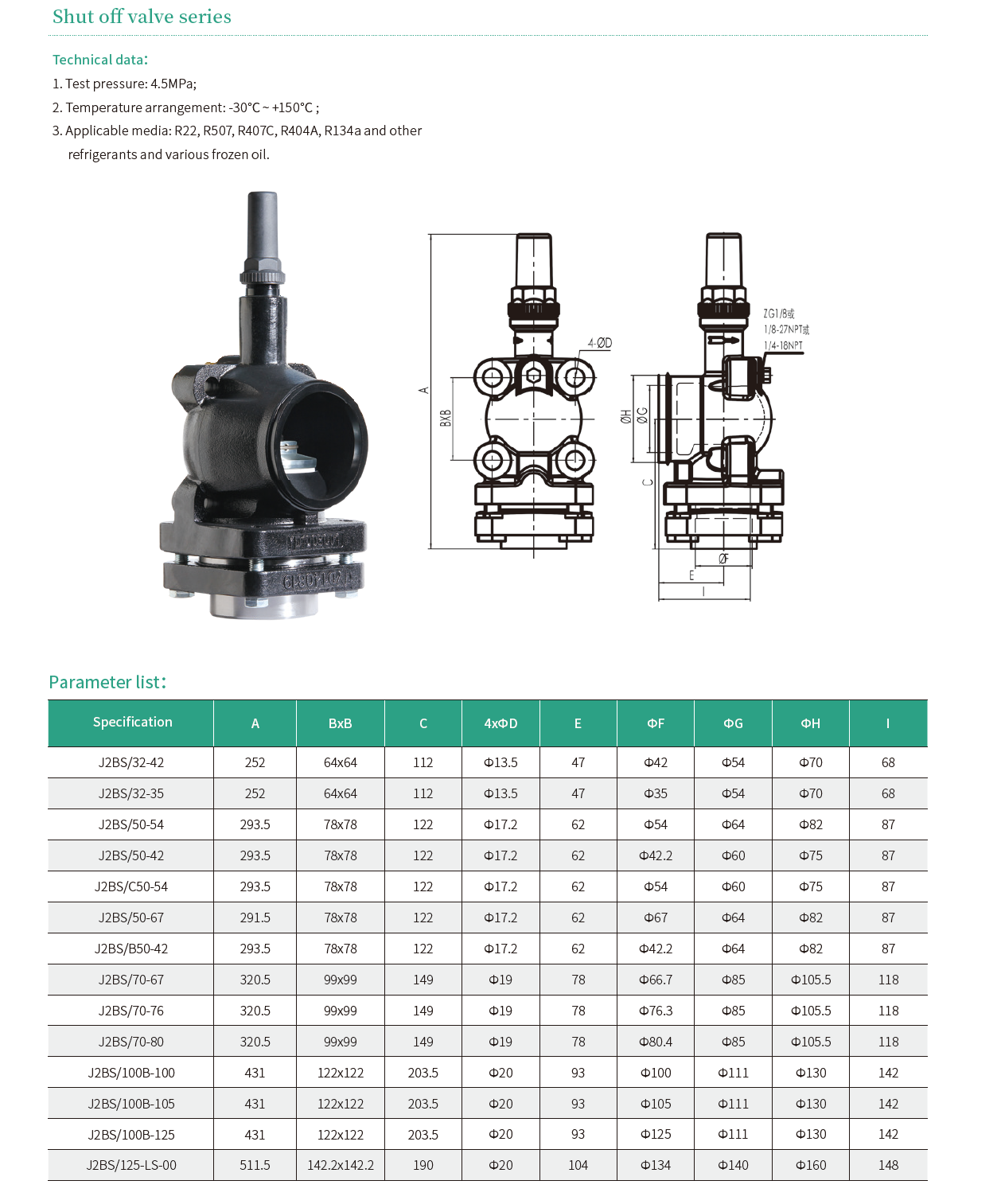

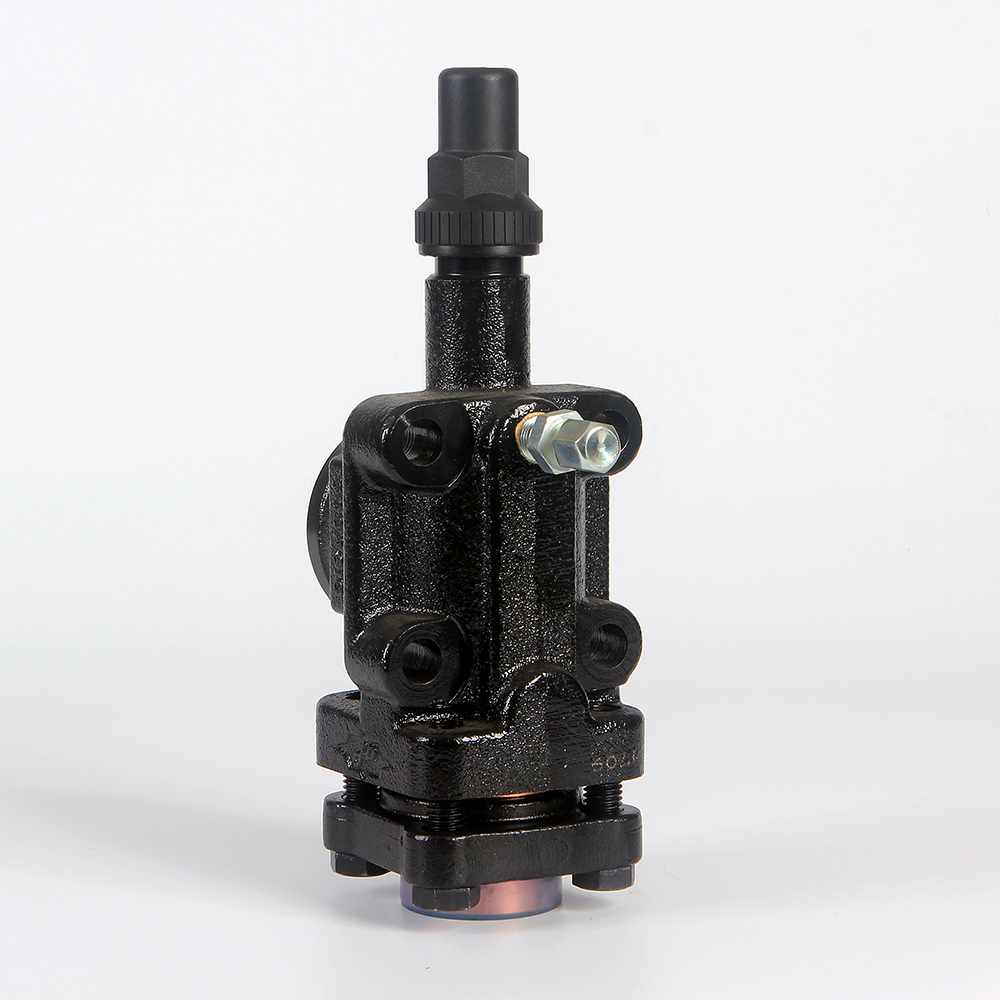

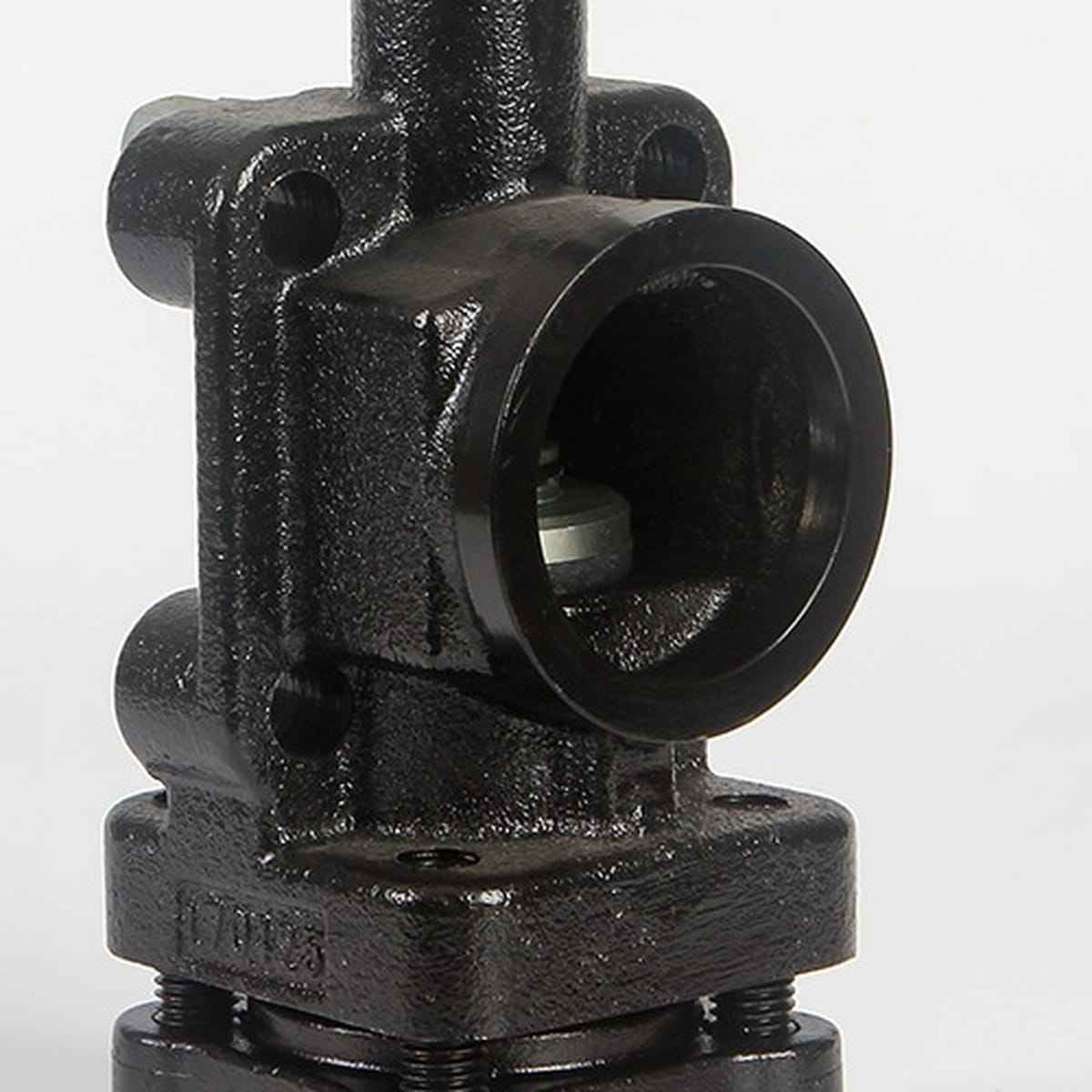

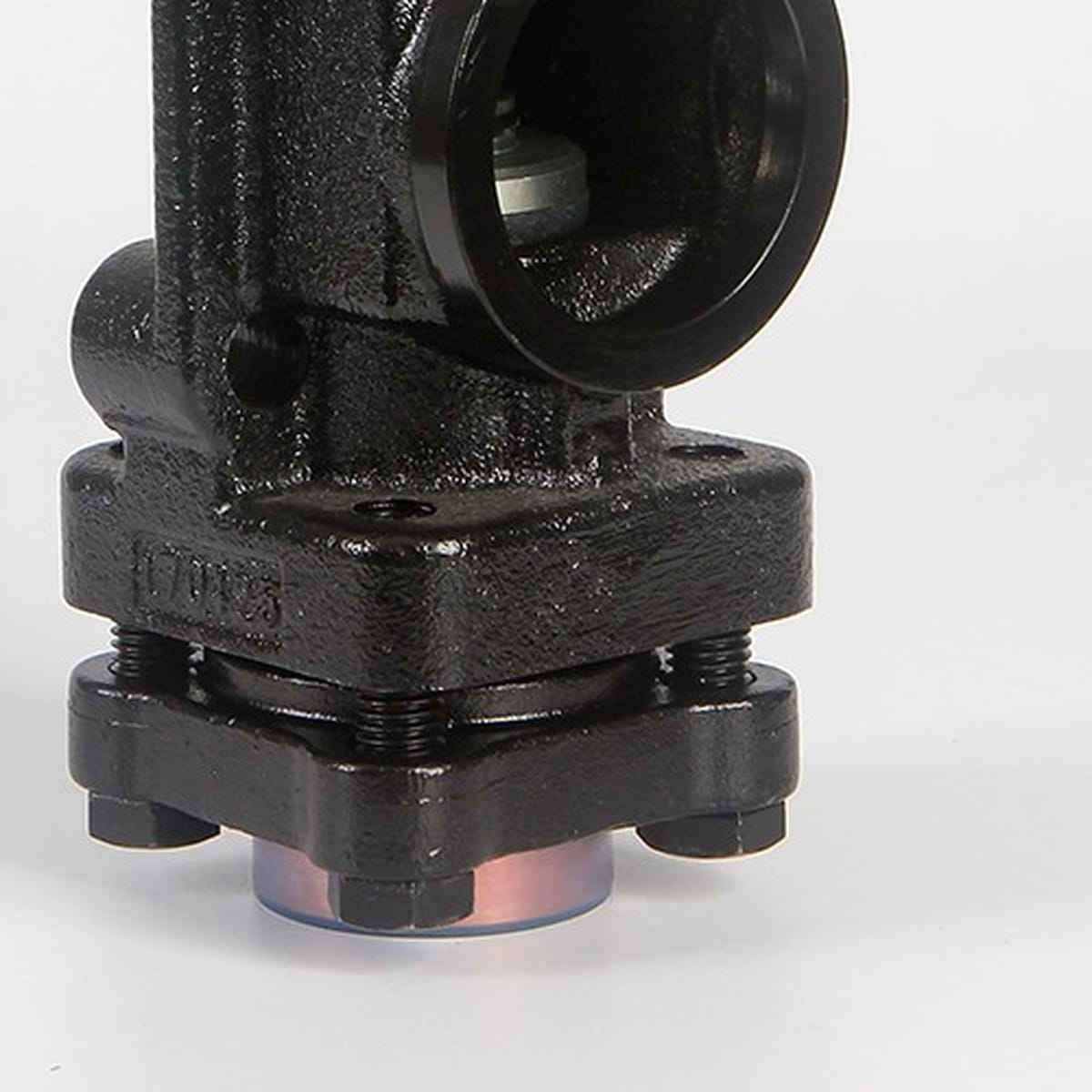

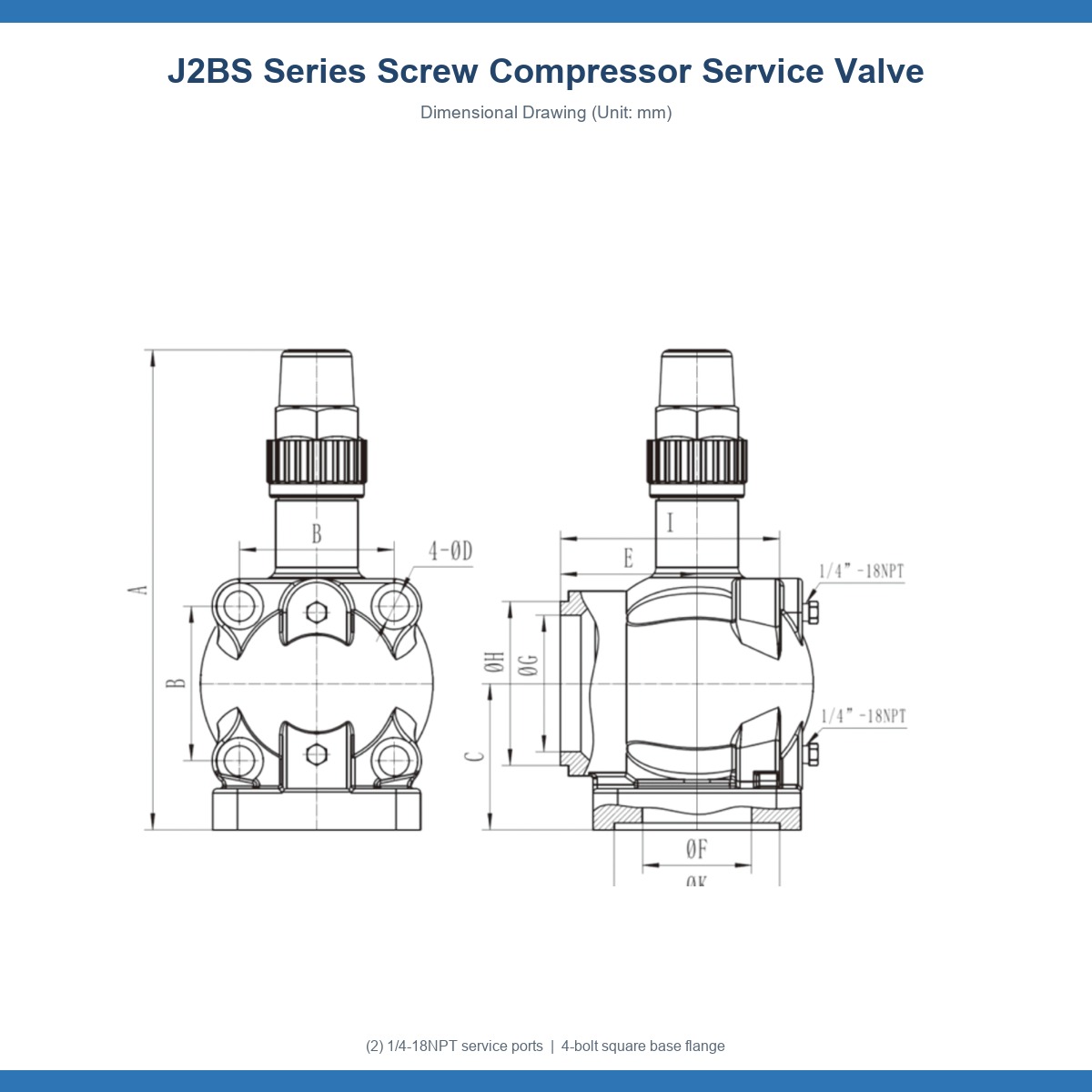

Solid Cast Iron Construction: Cast iron body with a machined front port and two 1/4-18NPT service ports; the four-bolt square flange base clamps firmly onto the compressor port for a stable, sealed joint. Sizes 1.5 inch to 4 inch (J2BS/40 to J2BS/105) fit most screw compressor ports, with 5 inch J2BS/126 available on request.

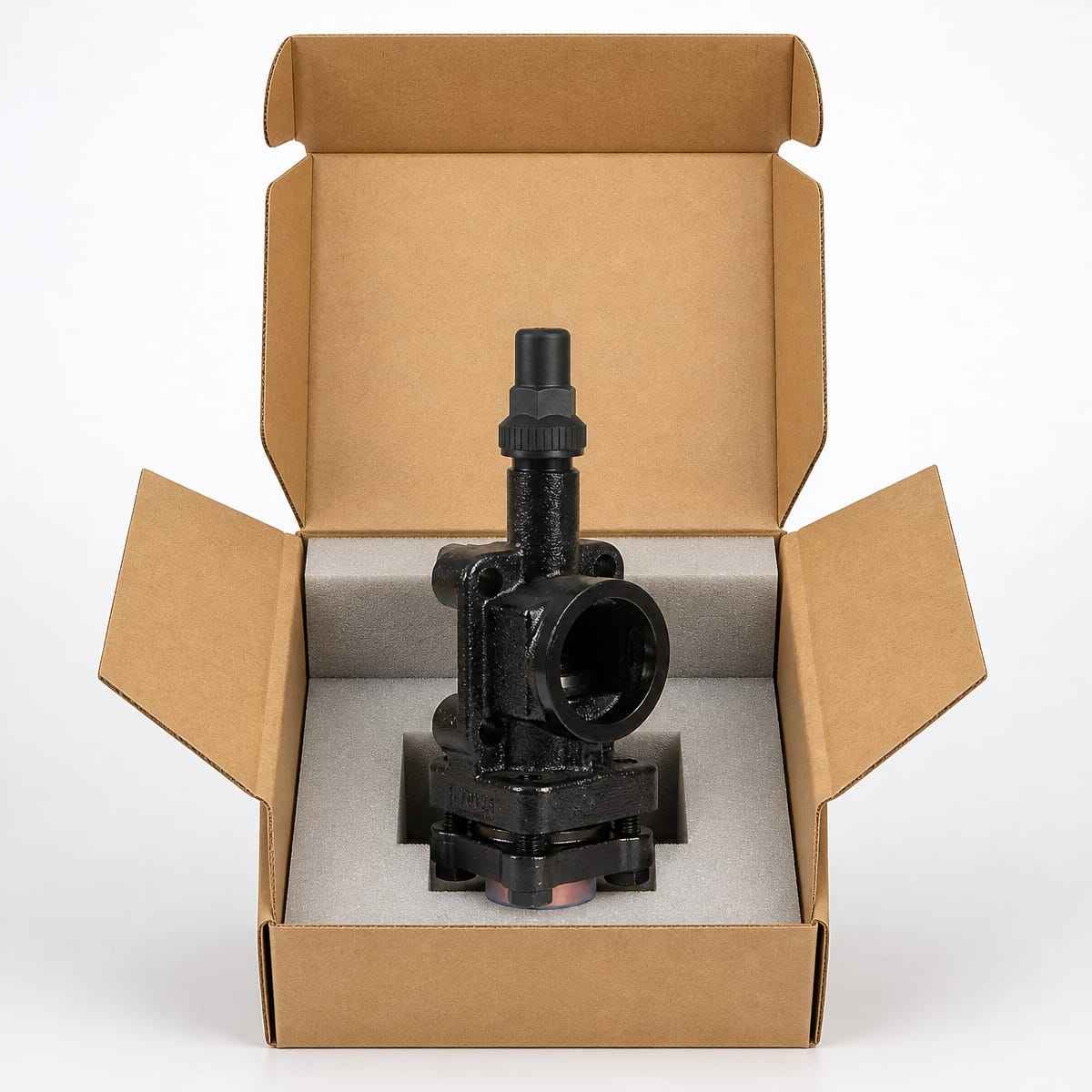

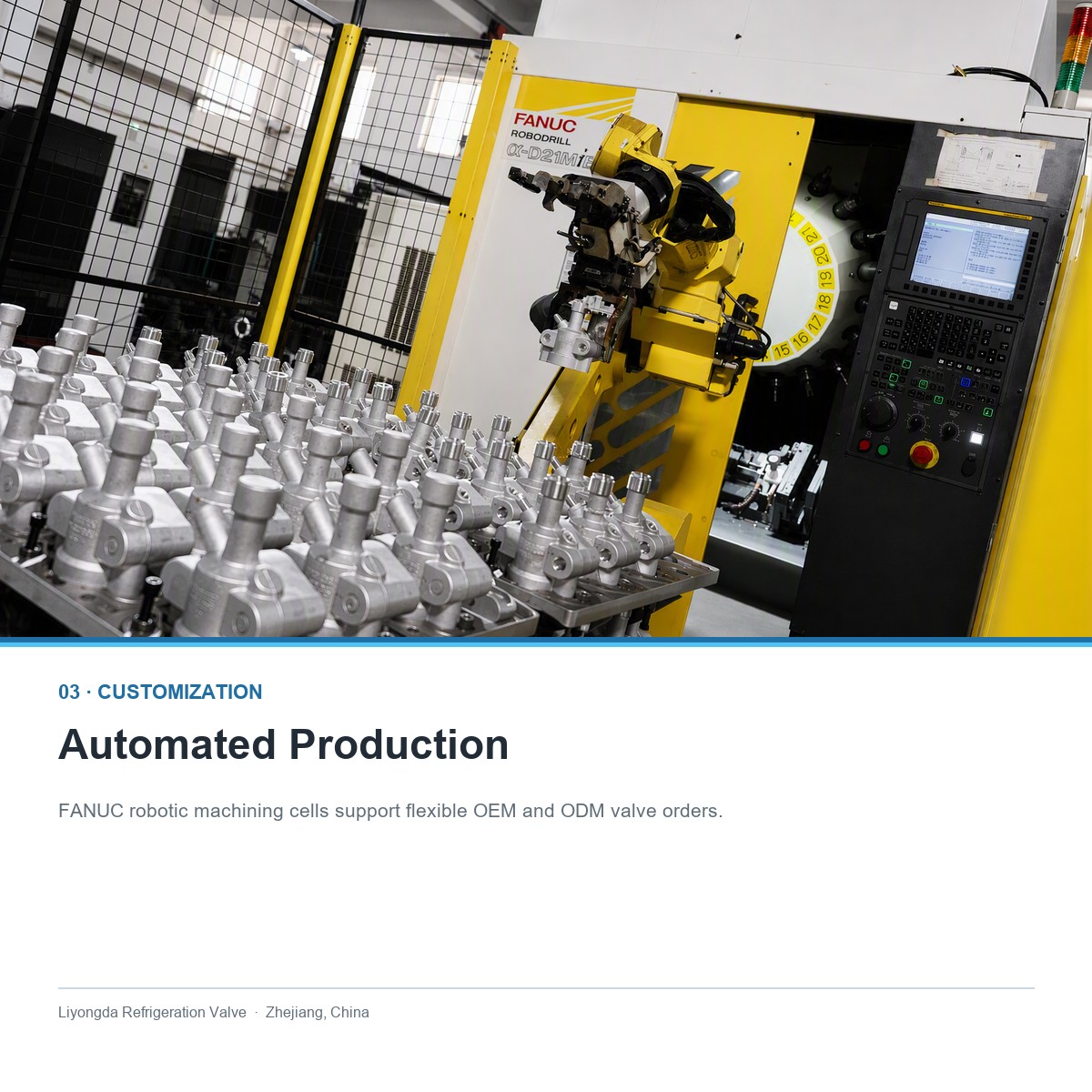

30 Years of Valve Manufacturing: Produced by Liyongda, a refrigeration valve maker with over 30 years of experience, each J2BS unit ships in an export carton with foam protection. OEM and ODM orders are welcome; send your screw compressor model and connection size and we will recommend the matching valve and dimensions.
