Views: 0 Author: Site Editor Publish Time: 2025-08-19 Origin: Site
Ever wondered how your fridge keeps food fresh or why air conditioners cool entire rooms? The answer is the refrigeration cycle, a clever system that moves heat instead of creating cold. From home kitchens to global cold chain logistics, it powers modern life. In this beginner’s guide, we’ll break down the main refrigeration cycle components—compressor, condenser, expansion valve, and evaporator—so you can finally understand how cooling systems work in clear, simple steps.
The refrigeration cycle is a process that moves heat. It does not create cold—it removes unwanted heat instead.
We see it everywhere: refrigerators, freezers, and air conditioners. Large industries also depend on it for cold chain logistics.
· It keeps food safe and fresh.
· It makes homes comfortable during summer.
· It preserves medicines and chemicals during transport.
· It supports massive industrial cooling systems.
Think of a baseball diamond. Each base is a stage in the cycle. The compressor starts at home plate. The condenser sits on first base. At second base, the expansion valve reduces pressure. Finally, the evaporator waits at third base. Just like players run around the field, refrigerant flows through each stage.
Another way: boiling water. At high pressure, it boils at a higher temperature. At low pressure, it boils much sooner. Refrigerants behave the same way.
Step | Action | State of Refrigerant |
Compression | Gas is squeezed, pressure and temperature rise | Low-pressure vapor → High-pressure vapor |
Condensation | Heat is rejected, vapor turns into liquid | High-pressure vapor → High-pressure liquid |
Expansion | Pressure drops sharply, refrigerant cools | High-pressure liquid → Low-pressure mixture |
Evaporation | Heat is absorbed from air or objects, liquid evaporates | Low-pressure liquid → Low-pressure vapor |
This cycle repeats continuously, powering every cooling system we use.
Every refrigeration system relies on four key parts. Together, they move heat and create the cooling effect we use daily.

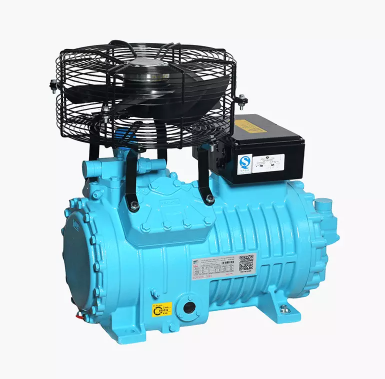

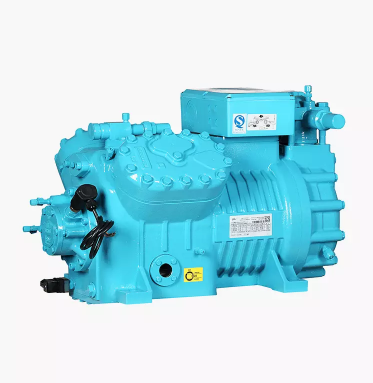

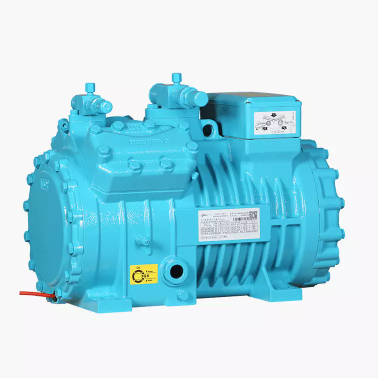

The compressor acts like the “heart” of the cycle. It pulls in refrigerant as a low-pressure vapor. After compression, it leaves as high-pressure, high-temperature vapor.
What it does:
· Reduces volume of refrigerant gas.
· Raises pressure and temperature.
· Pushes refrigerant through the entire system.
Types of compressors:
Type | Common Use Cases |
Scroll | Residential ACs, heat pumps |
Rotary | Small cooling units |
Reciprocating | Refrigerators, small chillers |
Screw | Large industrial chillers |
That’s why technicians often call it the pump or the heart.
After compression, refrigerant needs to release heat. The condenser makes that possible by acting as a heat exchanger.
How it works:
· Hot vapor enters from the compressor.
· It rejects heat to air or water.
· Vapor condenses into a high-pressure liquid.
Types of condensers:
· Air-cooled – use fans to blow air across coils.
· Water-cooled – rely on water flow for better heat transfer.
Examples we see: outdoor AC units, rooftop chillers, large cooling towers.
Next comes the expansion valve, sometimes called a metering device. Its job is to lower refrigerant pressure and temperature.
Functions:
· Controls refrigerant entering the evaporator.
· Adjusts flow depending on cooling load.
· Maintains system stability.
Types of devices:
Device Type | How It Works |
TXV (Thermostatic) | Uses bulb sensing temperature to adjust flow |
EEV (Electronic) | Opens/closes rapidly for precise control |
Capillary Tube | Simple narrow tube, often in small fridges |
Think of it like a spray can nozzle. Liquid expands quickly and cools as pressure drops.
Finally, the evaporator absorbs heat from the air or product. It’s often called the “indoor unit” because we feel its cooling directly.
What happens inside:
· Cold refrigerant enters as a low-pressure liquid.
· It absorbs heat, boils, and turns into vapor.
· Air passing across the coil becomes cooler.
Why superheating matters: It ensures only vapor, not liquid, returns to the compressor. Liquid returning can damage the compressor.
Examples: refrigerator coils, fan coil units in homes, air handlers in offices.
Beyond the four main parts, every refrigeration system relies on supporting components. These ensure smooth operation, efficiency, and safety.
Pipes link the compressor, condenser, expansion valve, and evaporator. They act as the bloodstream of the system.
· Copper or aluminum pipes are common.
· Good insulation reduces energy loss.
· Pipe layout affects system reliability.
Refrigerants carry heat throughout the cycle. They change state easily between liquid and vapor.
Common Types:
Refrigerant | Code | Notes |
Hydrofluorocarbon | R32, R410A | Widely used in ACs |
Hydrocarbon | R290 (Propane) | Efficient but flammable |
Ammonia | R717 | Popular in industrial plants |
Carbon dioxide | R744 (CO₂) | Eco-friendly, high pressure |
HFO blends | R1234yf, R1234ze | Low GWP, modern systems |
Every choice affects efficiency and environmental impact.
Controls keep systems safe and stable. They monitor pressure, temperature, and flow.
· Pressure switches shut systems down when pressure is too high.
· Thermistors detect temperature changes quickly.
· Sight glasses show refrigerant condition in the pipeline.
Without these, breakdowns and safety risks increase.
Compressors need lubrication to run reliably. Oil protects moving parts and reduces friction.
Functions:
· Keeps bearings and pistons running smoothly.
· Cools compressor parts.
· Prevents metal wear.
Systems often use oil separators and filters. They make sure oil stays where it belongs.
The refrigeration cycle may look complex at first. But when broken down, it follows a clear series of steps.
It arrives as a low-pressure vapor. Cool, expanded, and ready for compression.
The compressor squeezes the vapor tightly. Now it becomes a high-pressure, high-temperature vapor. This energy boost drives the rest of the cycle.
Hot vapor moves into the condenser coils. Fans or water remove heat from it. As it cools, the vapor condenses into a high-pressure liquid.
The liquid passes through the expansion valve. Its pressure falls quickly, and temperature drops too. This prepares it for heat absorption.
Cold liquid refrigerant enters the evaporator coil. It takes in heat from air, food, or objects. During this process, it boils and becomes vapor again.
The vapor flows back into the compressor. The loop restarts, keeping the cooling effect constant.
Step | Location | Action Performed | Refrigerant State |
1 | Compressor | Increases pressure, raises temperature | Vapor → Hot vapor |
2 | Condenser | Rejects heat, condenses refrigerant | Hot vapor → Liquid |
3 | Expansion | Drops pressure, reduces temperature | Liquid → Cold mix |
4 | Evaporator | Absorbs heat, vaporizes refrigerant | Liquid → Vapor |
5 | Back to start | Returns to compressor, loop continues | Vapor |
[Low-Pressure Vapor] → [Compressor] → [High-Pressure Vapor]
→ [Condenser] → [High-Pressure Liquid]
→ [Expansion Valve] → [Low-Pressure Liquid/Vapor Mix]
→ [Evaporator] → [Low-Pressure Vapor] → Back to Compressor
The refrigeration cycle works because of thermodynamics. It relies on pressure, temperature, and phase changes of refrigerant.
When pressure rises, refrigerant temperature rises too. When pressure drops, the boiling point falls.
Example:
· Water boils at 100°C at sea level.
· On Mount Everest, it boils at 71°C.
· Refrigerants can boil at -40°C under low pressure.
This pressure–temperature link drives every step of the cycle.
Refrigerant shifts state easily. It moves between liquid, vapor, and gas.
· In the evaporator, liquid absorbs heat and vaporizes.
· In the condenser, vapor releases heat and condenses to liquid.
· In the compressor, gas is forced into higher energy states.
This continuous change allows efficient heat transfer.
Term | Meaning | Why It Matters |
Superheat | Heat added beyond boiling point | Ensures only vapor returns to compressor |
Subcooling | Heat removed below condensing point | Ensures only liquid enters expansion valve |
Saturation | State where liquid and vapor coexist | Marks transition zone in the cycle |
These conditions prevent damage and improve performance.
Cooling systems are judged by efficiency. The Coefficient of Performance (COP) is the key metric.
Formula:
COP = Cooling Effect (kW) ÷ Power Input (kW)
· Higher COP means more cooling for less energy.
· Modern systems use smart controls to maximize COP.
· Seasonal efficiency varies by outdoor temperature.
Cooling technology keeps evolving. New methods improve efficiency, reliability, and sustainability.
EVI boosts compressor performance in tough conditions. It injects vapor mid-cycle to balance pressure.
Benefits:
· Increases refrigeration capacity.
· Helps during hot summer loads.
· Reduces risk of compressor overheating.
Systems using EVI often deliver higher efficiency with the same equipment size.
Traditional valves work, but they lack accuracy. EEVs open and close hundreds of times per second.
Why it matters:
· Precise refrigerant flow control.
· Faster response to load changes.
· Better energy savings compared to TXVs.
Compressors usually run at fixed speed. VFDs change motor speed to match demand.
Advantages:
· Lower power use during light loads.
· Reduced wear on mechanical parts.
· Quieter operation in residential systems.
Modern systems use sensors and cloud connections. They track performance in real time.
· Pressure, temperature, and airflow data go online.
· Algorithms optimize cooling automatically.
· Users get alerts before failures occur.
Smart control makes maintenance easier and systems more reliable.
Companies now look beyond synthetic refrigerants. Natural options lower global warming potential (GWP).
Examples of natural refrigerants:
Refrigerant | Code | Key Benefit |
Ammonia | R717 | High efficiency, zero GWP |
CO₂ | R744 | Widely available, non-flammable |
Propane | R290 | Excellent efficiency, eco-friendly |
This trend helps meet stricter environmental rules worldwide.
The refrigeration cycle isn’t just theory. We use it daily in homes, businesses, factories, and transport systems.
At home, refrigeration makes life comfortable. Refrigerators preserve food by keeping it below spoilage temperature. Air conditioners cool entire rooms during hot seasons. Heat pumps reverse the cycle to provide heating in winter.
Shops and warehouses depend on reliable cooling. Supermarkets use large display cases powered by multiple compressors. Cold storage facilities protect meat, produce, and medicines. Server rooms need constant cooling to avoid equipment failure.
Factories rely on heavy-duty refrigeration. Chemical plants use ammonia-based systems for efficiency. Large cooling towers reject excess heat from production processes. These applications often run 24/7 with strict monitoring.
Refrigeration keeps goods safe during travel. Trucks use compact systems to deliver food over long distances. Shipping containers transport frozen fish, fruits, or vaccines worldwide. Without it, global trade in perishables would collapse.
Sector | Typical Equipment | Example Use Case |
Residential | Refrigerator, AC, heat pump | Home cooling and food storage |
Commercial | Display cases, walk-in freezers | Supermarket refrigeration |
Industrial | Ammonia chillers, cooling towers | Chemical production plants |
Transportation | Reefer trucks, reefer containers | Cold chain logistics |
A refrigeration system lasts longer when we care for it. Simple checks and cleaning routines prevent costly failures.
Dust and grease collect on coils over time. Dirty coils make systems work harder and waste energy.
Quick tips:
· Use a soft brush or vacuum for condenser fins.
· Clean evaporator coils during routine inspections.
· Keep surrounding areas clear of debris.
Refrigerant levels affect cooling performance. Too little charge causes poor efficiency and coil freezing. Too much charge may damage the compressor.
Checklist:
· Look for oil stains, often signs of leaks.
· Use gauges to confirm correct pressures.
· Repair leaks before topping up refrigerant.
Technicians track these values to ensure proper operation. Superheat confirms only vapor returns to the compressor. Subcooling shows liquid is ready at the expansion valve.
Target ranges vary by system, but both must be checked regularly.
Air filters block dust and protect coils. Clogged filters reduce airflow and stress the system.
Best practices:
· Replace filters every few months in residential units.
· Inspect airflow paths in commercial and industrial systems.
· Ensure fans run smoothly without unusual noise.
Task | Why It Matters | How Often |
Clean condenser coils | Improve heat rejection | 3–6 months |
Clean evaporator coils | Prevent icing, maintain flow | 6–12 months |
Check refrigerant charge | Ensure efficiency, avoid wear | Annually |
Measure superheat/subcooling | Protect compressor and valve | Annually |
Replace air filters | Maintain airflow, save energy | 2–4 months |
Even the best refrigeration systems face problems. Knowing the signs helps us fix them quickly and avoid breakdowns.
The compressor works hardest in the cycle. If it overheats, lubrication oil may break down. Causes include high compression ratios, dirty coils, or poor ventilation.
Signs to watch for:
· Loud or unusual noises.
· High discharge temperatures.
· Frequent tripping of safety switches.
Ice means poor heat transfer inside the evaporator. Airflow restrictions or low refrigerant often cause this.
Possible causes:
· Dirty air filters.
· Blocked fans or ducts.
· Incorrect refrigerant charge.
Melted ice may lead to water leaks around the unit.
When the valve doesn’t meter flow correctly, problems follow. Too much refrigerant floods the coil. Too little starves the evaporator.
Warning signs:
· Frost on the valve body or pipes.
· Uneven cooling between rooms.
· Rapid pressure swings at gauges.
Refrigerant leaks reduce system efficiency. The compressor works harder but cools less.
Symptoms:
· Warm air from vents.
· Bubbles in the sight glass.
· Frost on the suction line.
Causes:
· Leaky joints or fittings.
· Damaged coils or service valves.
If energy bills climb, the system may be inefficient. Dirty coils, worn parts, or refrigerant issues often contribute.
Checklist for efficiency problems:
· Inspect condenser and evaporator coils.
· Verify refrigerant levels.
· Monitor superheat and subcooling readings.
· Check airflow and filter condition.
Problem | Likely Cause | Key Symptom |
Compressor overheating | Dirty coils, poor airflow | High discharge temp, noise |
Ice on evaporator | Low charge, blocked flow | Coil icing, water leaks |
Valve malfunction | Metering fault | Frost patterns, imbalance |
Low refrigerant charge | Leaks in system | Weak cooling, frost, bubbles |
Reduced efficiency | Dirty coils, worn parts | Higher bills, poor cooling |
The four core parts—compressor, condenser, expansion valve, and evaporator—work together to move heat and deliver efficient cooling. Supporting components like pipework, sensors, lubrication systems, and refrigerants keep everything stable and reliable.
For beginners, focusing on these basics builds confidence before diving into advanced technologies such as electronic expansion valves, enhanced vapor injection, or smart HVAC controls. By learning step by step, readers can troubleshoot problems, improve energy efficiency, and extend system life.
Q: What are the main components of a refrigeration cycle?
A: The main components are the refrigeration compressor, condenser, expansion valve, and evaporator.
Q: Which component is responsible for absorbing heat?
A: The evaporator absorbs heat from air, food, or objects.
Q: How many types of expansion devices are there?
A: Common types include TXV, EEV, and capillary tubes.
Q: What refrigerant is most commonly used today?
A: R32 and R410A remain widely used in modern systems.
Q: Can the refrigeration cycle be reversed (as in heat pumps)?
A: Yes, heat pumps reverse the cycle to provide heating.
